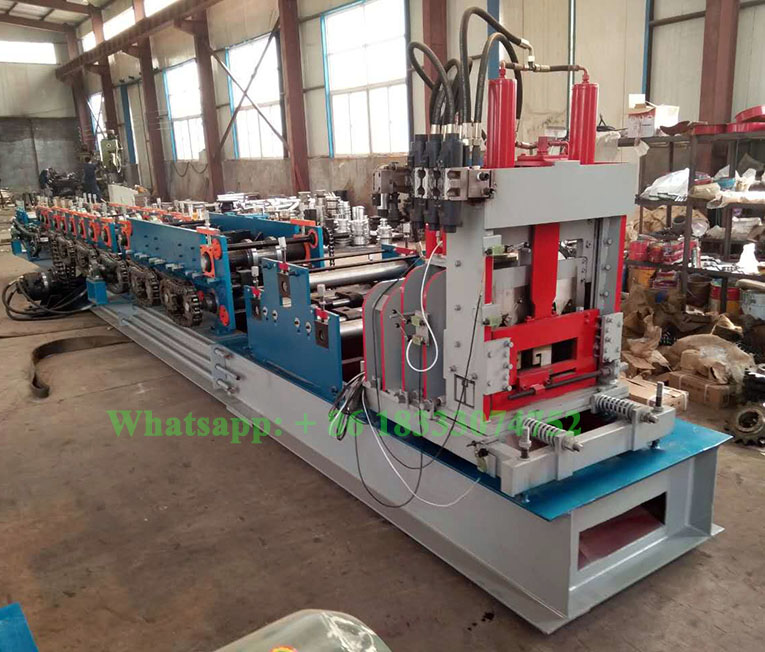

Full-automatic C Z Purlin Interchange Rolling Forming Machine
The C Z Purlin Interchange Machine has the following features:
1). This machine can do a rapid Inter-changeable CZ Purlin Roll forming System.

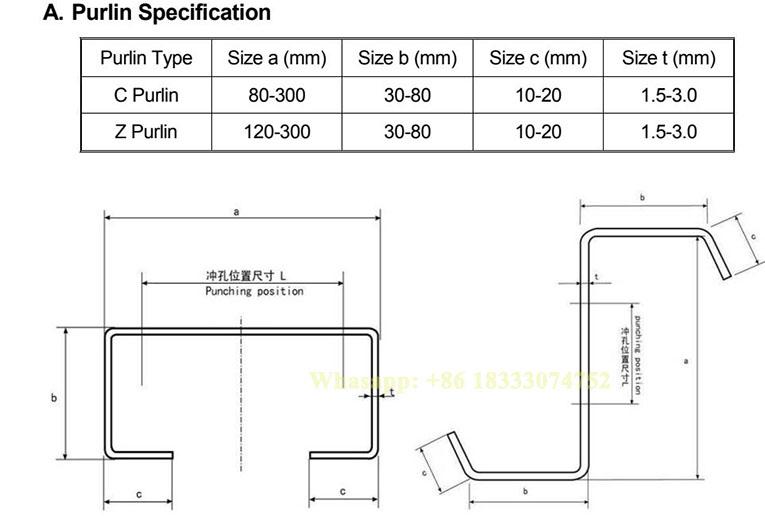

2).Capable of producing the standard industry range of C, Z, U shapes 80-300mm within the thickness of 1.5 to 3.2mm.
3). Providing programmable modular hydraulic punching and cutting as default we give 5 types of punching dies.
4). Rapid C/Z profiles and its size changeover times under 5 minutes.
5). European quality control, machine surface adopts powder coating, coating before assembly.
1. Material For The Full-automatic C Z Purlin Interchange Rolling Forming
1), Type : PPGI PPGL
2), Width : 190-420mm
3), Thickness : 2-3mm
4), Yield stress : 350Mpa to 550Mpa
2, Product Of Full-automatic C Z Purlin Interchange Rolling Forming
1), Cover width : 80-300mm
2), Wave height : 80-300mm
3), Width : 40-80mm
3, Hydraulic decoiler Of Full-automatic C Z Purlin Interchange Rolling Forming
1), Type : Automatic with Coil car
2), Suitable coil OD : 1200mm
3), Suitable coil ID : 250-508mm
4), Max Coil width : 1000mm
5), Max. Capacity : 5 T
4, Leveling parts Of Full-automatic C Z Purlin Interchange Rolling Forming
1), Shaft : No. 45 steel
2), Roller : 95mm and No.45 steel with quenching
3), Forming Stand : UP : 5groupes Down : 6 group
5 , Punching Cutting Parts Of Full-automatic C Z Purlin Interchange Rolling Forming
1), Type : Hydraulic punching
2), Model material : Cr 12 with quenching
3), Cutting Blade : SKD 11
4), Type of Cutting : Length-set cutting
6, Main Forming Part Of Full-automatic C Z Purlin Interchange Rolling Forming
1), Shaft : No.45 steel
2), Roller : 80mm and GCR15 Steel Chrome plated
3), Forming Stand : 12 groups
4), Forming Speed : 30m/min
5), Transmission style : Score box drive
6), Main machine structure : Guide column or wallboard
7, Power Requirement Of Full-automatic C Z Purlin Interchange Rolling Forming
1), Type : 380AC/50HZ
2), Main motor: 11Kw
3), Hydraulic : 4 Kw
