CZ80/120-300 Interchange CZ Cold Rolled Purlins Roll Forming Machine For Building Materials
Main features of interchange cz cold rolled purlins machine
1, The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
1). Produce different purlin size without changing rollers or spacers.
2). No need changing cutter for different size.
3). Easy operation, low maintenance cost.
4). Infinite sizing(any size within machine range),help to save material.
5). Optional Punch hole at any position of purlin web side and flange side.

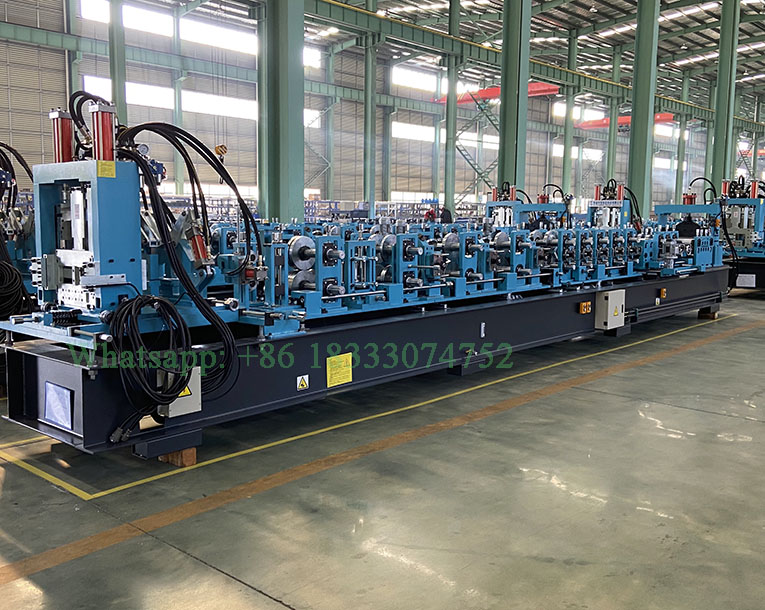

2.Detailed Images of interchange cz cold rolled purlins machine
Machine Parts:

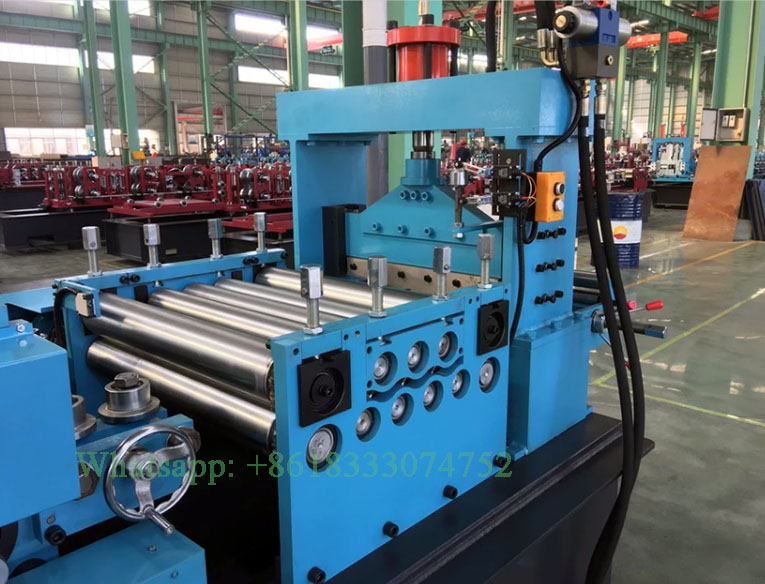

1) CZ purlin machine punching system
with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.
2) interchange cz cold rolled purlins machine roller
Rollers manufactured from high quality bearing steel GCr15, CNC lathes,
Heat Treatment. with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding
3) interchange cz cold rolled purlins machine post cutter
No need to change cutter for different size, made by high quality mold steel Cr12
with heat treatment . Cutter frame made from high quality 30mm steel plate by welding.
Pre-punching & Pre-cutting, stop to punch, stop to cut hydraulic motor:7.5KW, Hydraulic
pressure range: 0-16Mpa
4) interchange cz cold rolled purlins machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30m
Capacity: Max. 5Ton
5)interchange cz cold rolled purlins machine exit rack
Un-powered,two unit (3m*2)

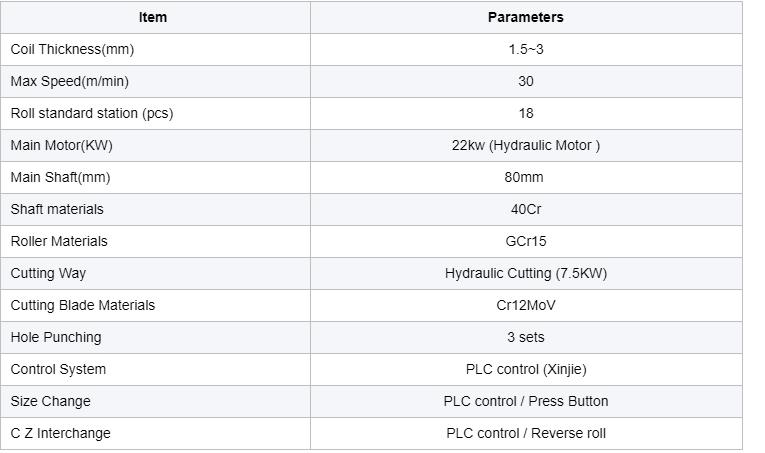

3.Other detailes of interchange cz cold rolled purlins machine
Suitable for material with thickness 1-3mm. Shafts manufactured from 45#,
Main shaft diameter=φ80mm,precision machined.
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling .
Main motor=22KW , Frequency speed control. Forming speed approx.18m/min.
PLC Control System Omron (Touch screen: WUXI xinjie)
Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON)
It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters
Combined with: PLC, Inverter, TouchScreen, Encoder, etc

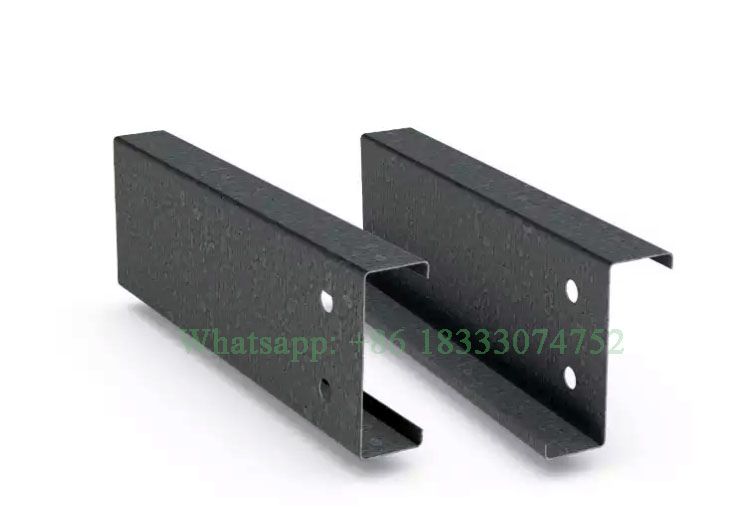

Standard Shape Profile ( Also can be customized)
C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
