Steel Sturcture Truss C Purlin Making Machine

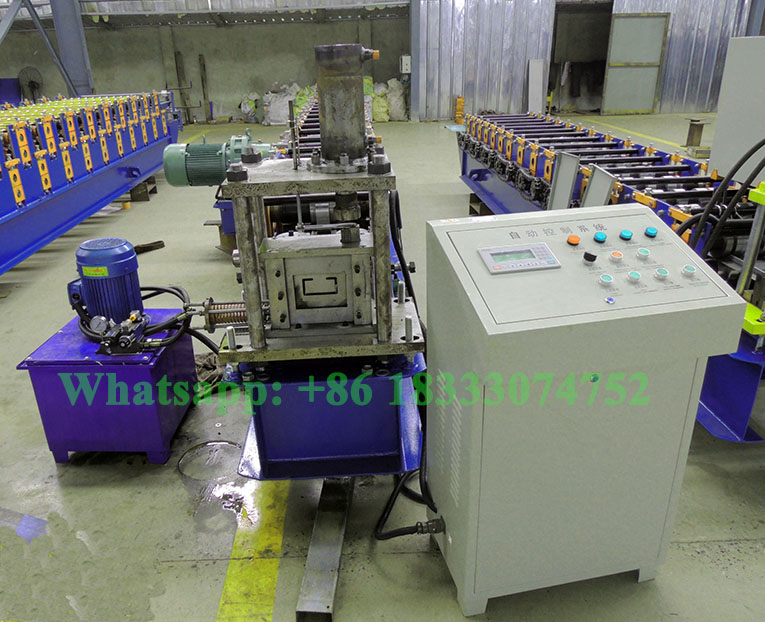

This Steel sturcture truss C purlin making machine is used to manufacture series of C sections. The machine is mainly composed of uncoiler, flattening device, punching device, cutting equipment, roll forming machine, collection table, hydraulic station, and PLC control system, etc. It can produce 80 - 300mm wide C purlins, height from 45 - 80mm. The raw material is cold rolled steel, galvanized steel, etc, material thickness is 1.5 - 3mm.
1, The advantages of C purlin machine manual size-change type are as follows:
1). Cost-effective.
2). No need changing cutter for different size.
3). Easy operation, low maintenance cost.
4). Infinite sizing(any size within machine range),help to save material.
5). Optional Punch hole at any position of purlin web side and flange side.
2, The Product Size Of Steel Sturcture Truss C Purlin Making Machine :
3, Main Steel Sturcture Truss C Purlin Making Machine Details:
1), Roller material:GCr12Mov
2), Work speed: 0-40 m/min
3), Frame:Middle plant welded structure
4), Roller shaft material:45# steel with tempering treatment
5), Transmission:by gear drive
6), Roller station:12 stations
7), Main power:5.5 KW
8), Voltage:380V/50HZ 3Phase or as customer's requirement
9), Cutter material:Cr12 with quenched
10), Work type: Hydrulic
11), Drive type: By pillar type cylinder
12), Hydraulic pump station
Hydraulic oil: 46# oil
Hydraulic motor power: 5.5 KW
