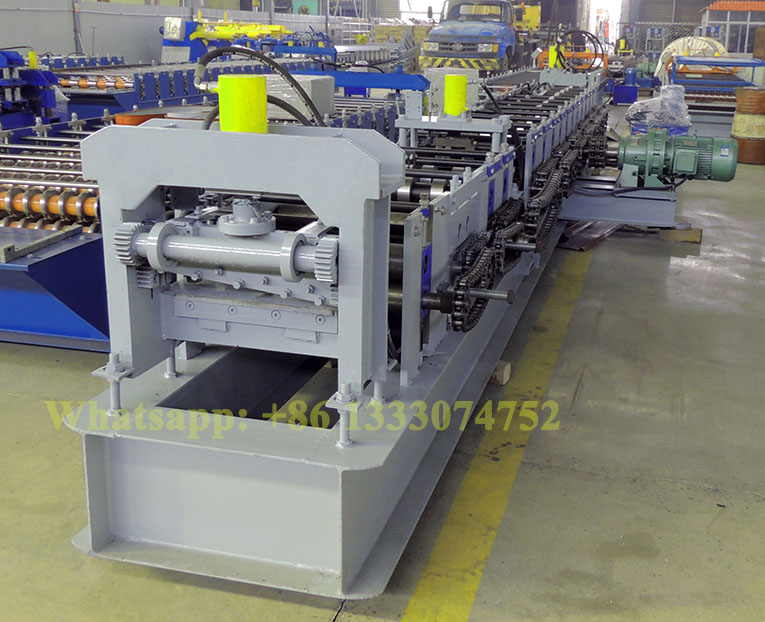

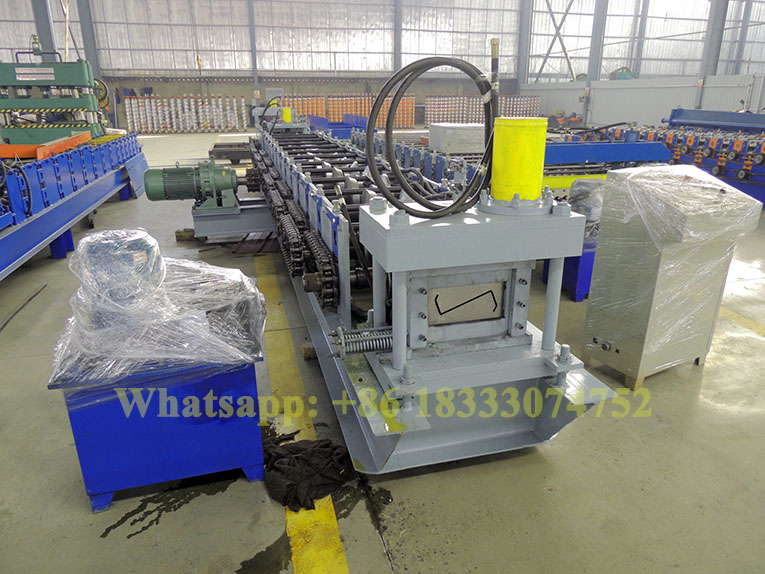

Steel Z Purlin Channel Roll Forming Machine

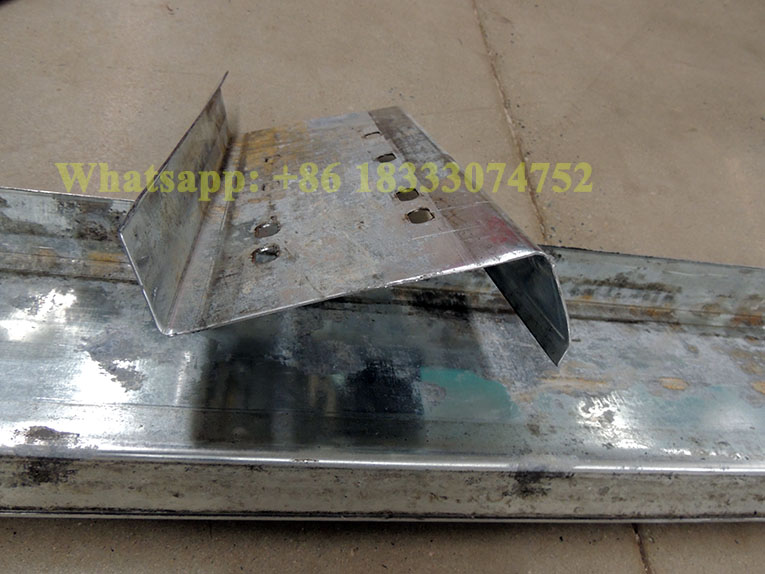

1, Product Of Steel Z Purlin Channel Roll Forming Machine:
2. Main Specification of Steel Z Purlin Channel Roll Forming Machine
A. 5T manual decoiler
1) Capacity: 5 ton
2) Loading width: MAX 300mm
3) Valid expanding range for coil inner diameter: 450-550mm
B. Main Forming Device Technical Dates:
1) Main motor power: 15kw
2) Feeding and leveling power: 4KW
3) Hydraulic power:5.5KW
4) Hydraulic pressure: 20Mpa
5) Punching: Hydraulic pre-punching before forming,
6) Punching mould:Cr12mov
7) Cutting blade: Cr12mov
8) Roller material: Gcr15 steel and quench treatment hardness 55-58, chrome coated 0.05mm
9) Leveling rollers: according to your profile
10) Valid width after formed: 100mm-300mm
