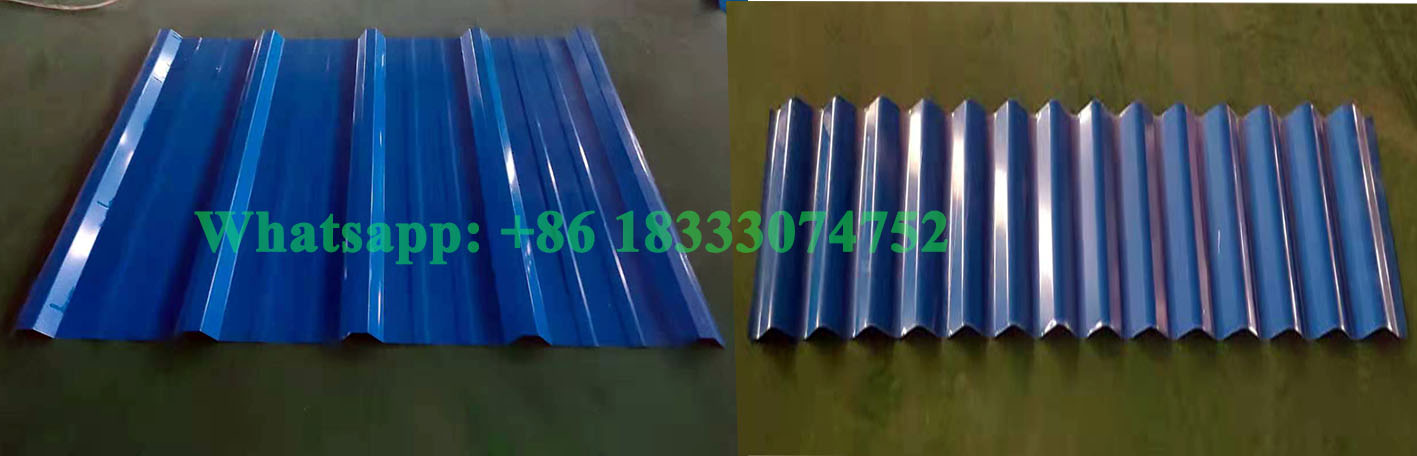

Bolivia Country Use Corugation And PV5 Roof Wall Panel Making Machine
1, Main Roll Forming Machine Details:
1) , Feeding device : One set guiding roller .Steel plate welded platform to carry the sheet and feed into roll forming system. Feeding width is adjustable with the handle wheels
2) , Rolling shaft : Shaft material:45# STEEL . Shaft diameter: 75 mm . Tempering treatment to prevent deformed and improve hardness.
3) , Roller : 45# steel . Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life.
4) , Rolling station : 13 Stations and 15 rolling stations
5) , Work speed : 8-20 m/min
6) , Machine structure: Steel plate welded structure
7) , Machine basic frame: 350# H steel welded
8) , Work power : 5.5 kw
9) , Rolling spacer : Anti rusty treatment
10) , Pull rod : Anti rusty treatment
11) , Transmission : By Chains with cover
Noted: please fill the lube in case the chains getting dry
2, Control system
1), Frequency brand: Delta (original)
2), PLC brand : Delta (original)
3), Frequency brand : Delta (original)
4), Screen type : Touch screen, also have buttons on the panel
5), Screen language : English/Chinese
6), Low pressure electric part : Schneider brand
7), Encode : Omron brand

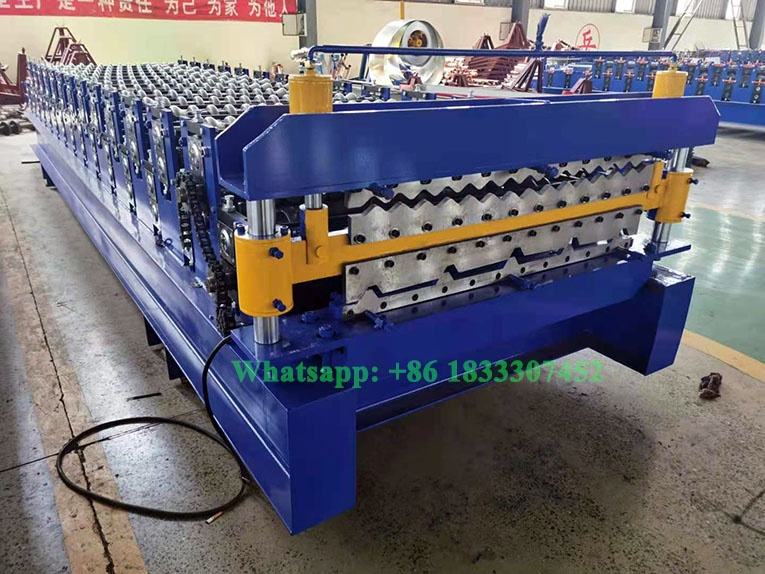

3, Main Forming Machine
