| Main Detailed Technical Dates | ||

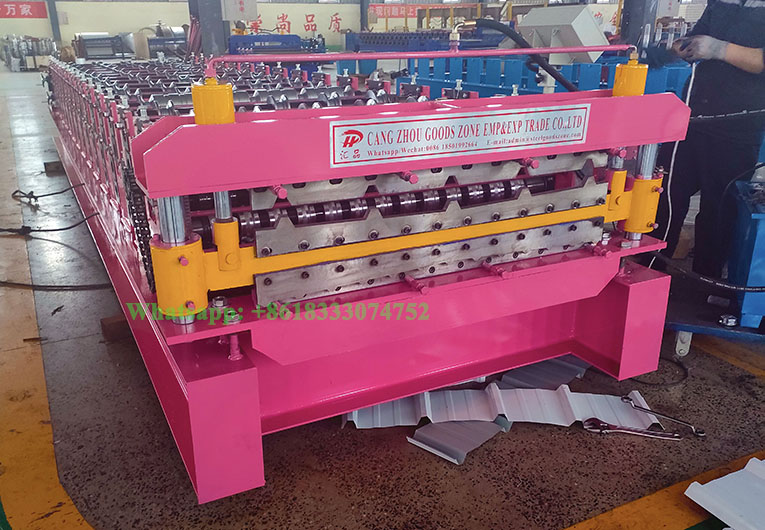

Items | Cladding Wall Sheet And Ribtype Steel Roofing Sheet Double Layer Making Machine | |
Material | Thickness | 0.4-0.8mm |
Coil width | 1220mm | |
Yield Strength | 235 Mpa | |
Material | Aluminium Coils, PPGI, Color Steel, GI. | |
Decoiler / Uncoiler | Uncoiler Type | Manual or Hydraulic or Auto Type |
Coil Width | Max. 1250mm | |
I.D | 508-610mm | |
O.D | Max. 1500mm | |
Flat Sheet Rolling Mill | Forming Stations | 13/15 Stations ( Depend on Profiles ) |
Roller material | 45# steel coated with 0.05mm hard chrome | |
Diameter of shaft | 72mm | |
Shaft material | High grade 45# steel | |
Drive type | Chains transmission | |
Forming speed | 0-15m/min | |
Main power | 5.5KW | |
Step Pressing Device | Pressing Type | Hydraulic type pressing |
Pressing Mould | Cr12 Mov steel, HRC58-62 | |
Automatic Cutting Device | Cutting type | Hydraulic cutting |
Cutting Die Material | Cr12Mov steel, HRC58-62 | |
CuttingTolerance | 3m+/-1mm | |
Encoder | OMRON Brand | |
PLC Electrical Control Board | PLC | Delta |
Inverter | Delta | |
Touch screen | Delta | |
Operation type | Touching screen & Buttons | |
Hydraulic Station | Hydraulic station | Famous Chinese brand |
Hydraulic Power | 4.0KW | |
Runout Tables | Table type | Simple unpowered type |
Function | To support the finished panels | |
 | ||
