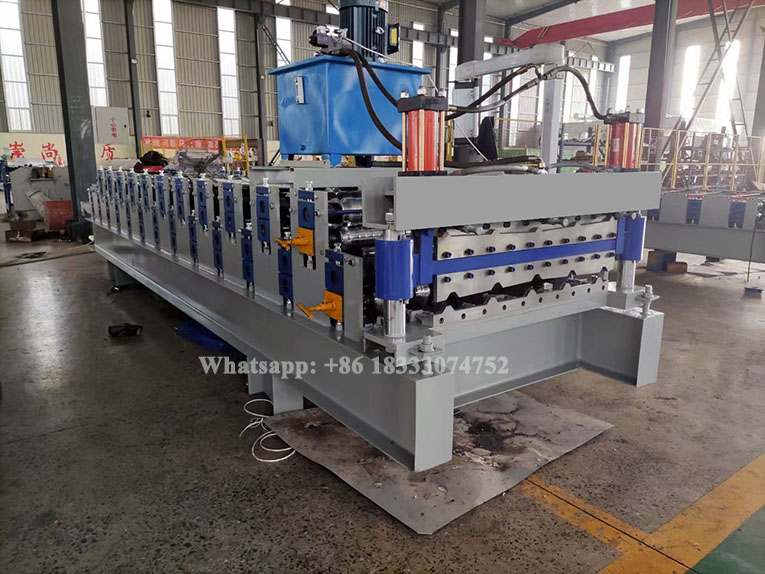

Botou Metropole And R-Panel Iron Roof Sheet Roll Forming Machine
Metropole And R-Panel Iron Roof Sheet Roll Forming Machine is designed to make the Metropole And R-Panel in batch fully automatically. The Metal Iron panel is widely used in many kinds of industrial factory, civilian buildings, It has advantage of pretty appearance, durable using and so on. By the double layer design, it can save cost and space. In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Main Details Of The Botou Metropole And R-Panel Iron Roof Sheet Roll Forming Machine
1), Length of the main part: about 7500х1450х1500
2), Weight of main part: 5.8 tons
3), Voltage: 380v 50hz 3 phase ( Also can be customized)
4), Roller fixer: middle plate
5), Frame: 350 H steel welded
6), Drive mode: chain
7), Material of rollers:45# steel, surface hard chromium plating.
8), Material of shafts: 45# steel
9), Diameter of shafts: φ80mm
10), Number of rollers: 13 rollers / 15 rollers
11), Main power: 5.5kw System
