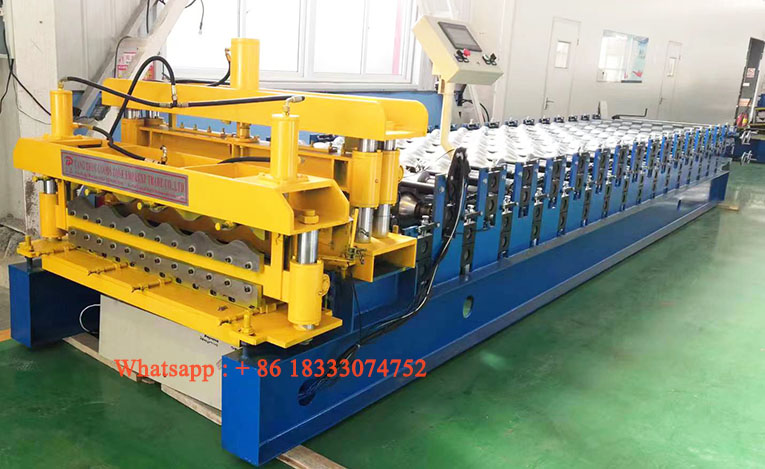

Roof Machine Double Layer Glazed Trapezoidal Roof Tile Roll Former
1, Roof Machine Double Layer Glazed Trapezoidal Roof Tile Roll Former Details :
1), Roller material: High grade NO. 45 forged steel with 0.05mm hard chrome plating
2), Shaft material: High grade NO. 45 carbon wrought steel
3), Cutting blade: Cr12 mould steel with quenched treatment
4), Diameter of shaft: 70mm or as your requirement
5), Main frame: 300 H steel
6), Forming steps Up layer : 13stations ; Middle layer:15 stations
7), Productivity: Up layer : 4-5m/min layer : 10-20m/min
8), Hydraulic station power : 5.5+4KW
9), Hydraulic pressure: 10-12MPa
10), Appearance size : About 6500mm*1500mm*1800mm
11), Weight: 6.5 tons
12), Hydraulic oil : 40# hydraulic oil
13), Electric tension: 380V 50 Hz 3 Phase or as your requirement
14), Cut Model : Hydraulic forming after cutting off
15), Cutter materia: Cr12 Heat Treatment
16), Electronic control system: PLC, Touch Screen, Encoding counter
17), Color: Blue, green or yellow or as your requirement
18), Rolling material : 45# steel,roller surfaces polishing, hard plating
2, The Finished Product Of Roof Machine Double Layer Glazed Trapezoidal Roof Tile Roll Former :
