V-250 Trapezoidal Long Span Double Layer Roofing Sheet Roll Forming Machine

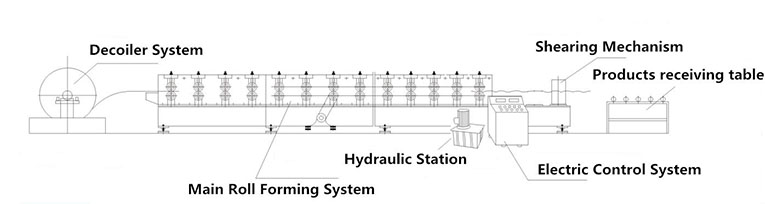

1, Work flow of V-250 Trapezoidal Long Span Double Layer Roofing Sheet Roll Forming Machine:

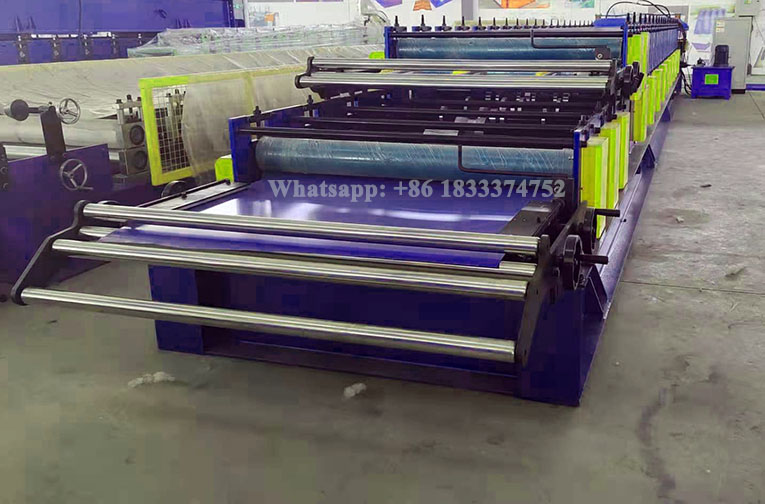

Decoiler→ Feeding Part→Roll forming Machine → Auto shearing →Products receiving table
2, Main Description Of V-250 Trapezoidal Long Span Double Layer Roofing Sheet Roll Forming Machine：

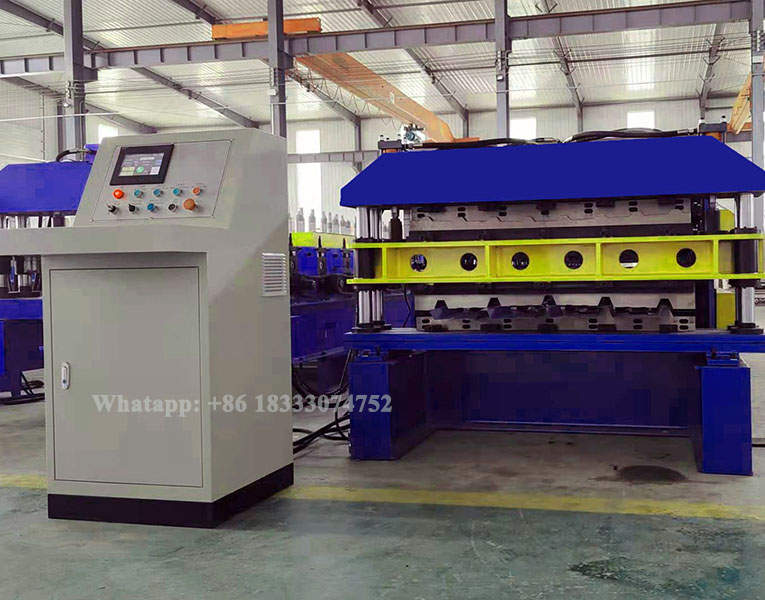

1). PLC control cabinet
PLC brand:Delta,Siemens or Mitsubish (as requested)
Low voltage components:Schneider
All PLC control cabinent are quipped with aviation plug, very easy to install,saving labor and time.
2). Hydraulic station
Hydraulic power:5.5KW
Hydraulic oil:46# hydraulic oil
With cooling fan which can prevent the oil from overheating,and big electromagnetic valve are more stable.
3),Main parameters :
Material thickness: 0.3-0.6 mm
Working speed: 8-12 m per minute
Processing material: color coated steel plate, galvanized steel plate

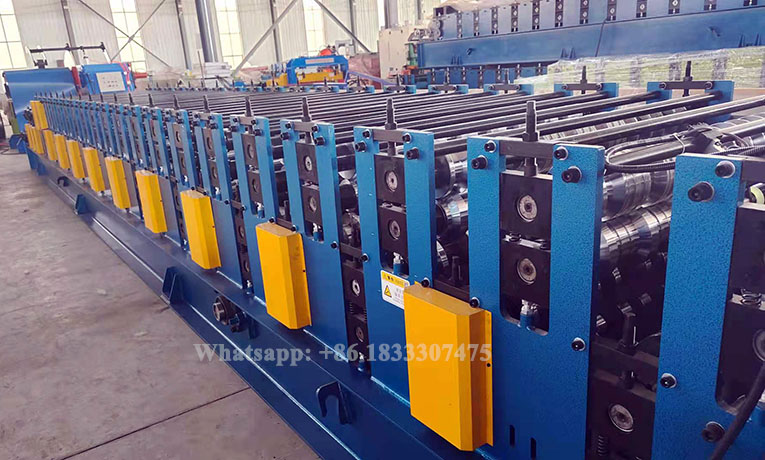

The machine base is made of high tensile strength H beam with precision welded and good rigidity; shaft, rollers are manufactured precisely to have long lifetime; efficient design and easy maintenance.
