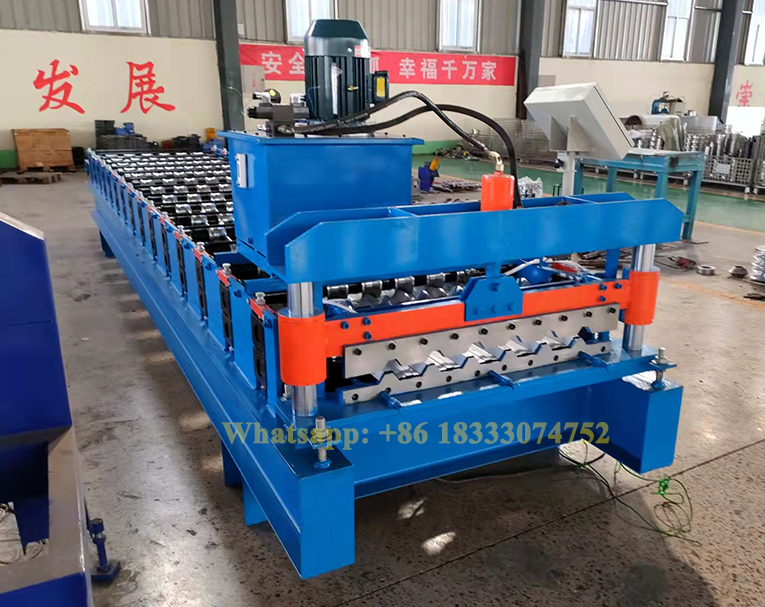

4 Angel Steel Metal Roof Sheet Panel Roll Forming Machine
1, 4 Angel Steel Metal Roof Sheet Panel Roll Forming Machine Product usage:
4 Angel Steel Metal Roof Sheet Panel Roll Forming Machine production are widely used for warehouse, factory or villa roof building. Its cost is cheaper and beautiful color.

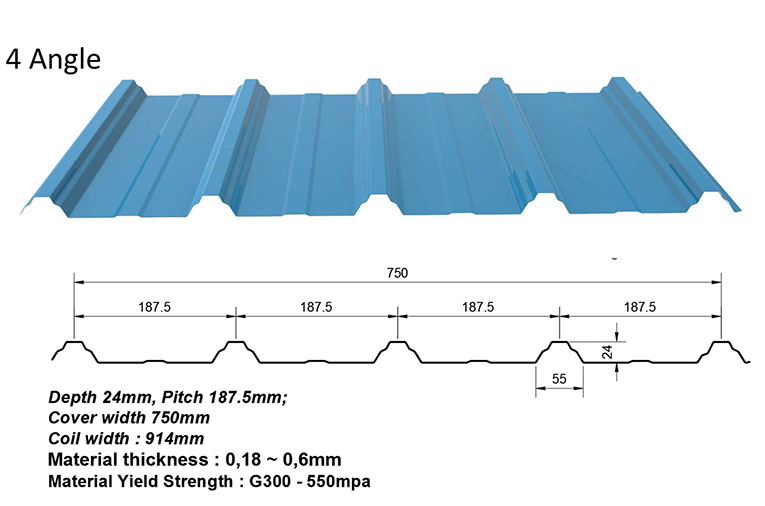

2, The Production Of 4 Angel Steel Metal Roof Sheet Panel Roll Forming Machine:

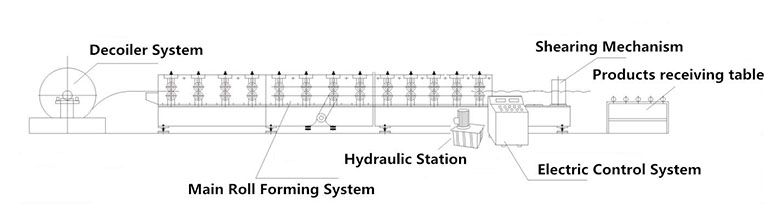

3, 4 Angel Steel Metal Roof Sheet Panel Roll Forming Machine Workflow :
4, Main technical parameters Of 4 Angel Steel Metal Roof Sheet Panel Roll Forming Machine :
1), Size of the main forming part : About 6500*1300*1300mm
2), Weight of main part : 4.5 Tons
3), Voltage : 380V/50HZ 3Phase ( can be optional)
4), Roller fixer:middle plate
5), Frame : 350H steel ( can be optional)
6), Drive mode : By chain
7), Material of rollers : 45#steel, surface hard chromium plating.
8), Material of shafts : 45#steel
9), Diameter of shafts : φ 70mm( can be optional)
10), Number of rollers : 13 rollers( can be optional)
11), Main power : 5.5kw
12), Material of mould : Cr12 quenched
13), Power supply : hydraulic power
