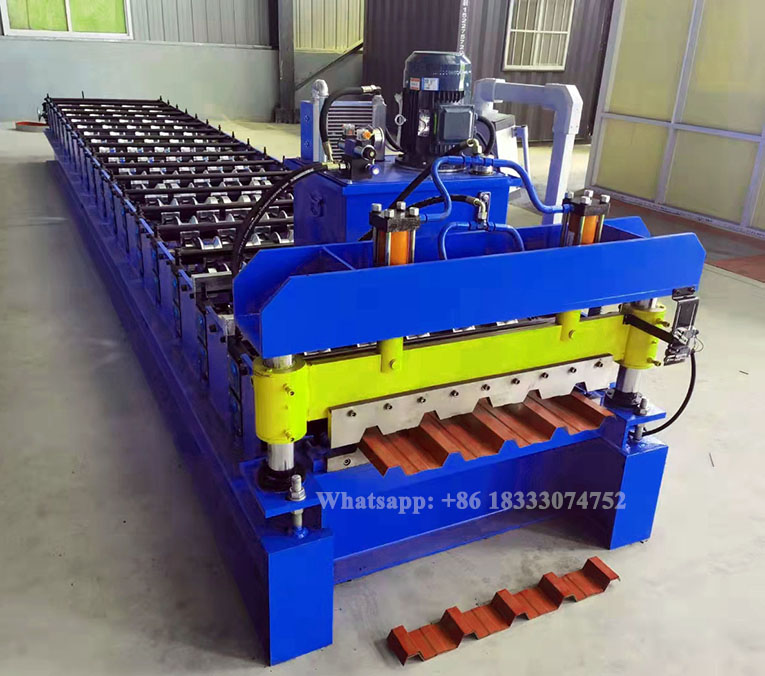

5 Gutter Roof And Wall Roll Forming Machine Details:
1, Raw material:Color Steel Sheet Coil/Glavanized Steel Coil
2, Feeding Width :914mm-1250mm
3, Effective width :Customized according to you need.
4, Thickness : 0.3-0.7mm
5, Machine Weight : About 6.0Tons
6, Dimension of machine: About 8.6m*1.65m*1.55m
7, Shaft station : 14/16 Stations
8, Rolling speed : 0-19m/min
9, Transmission: By chain
10, Size of Chain : 1.0 inch
11, Material of Frame : 350 H steel welding
12, Thickness of middle plate : 16mm
13, Material of Roller: 45# Steel plated hard
14, Power of main motor : 5.5KW
15, Cutter materials: GCr12 steel with quenched treated 60-62°C
16,Control system :PLC Control Box
