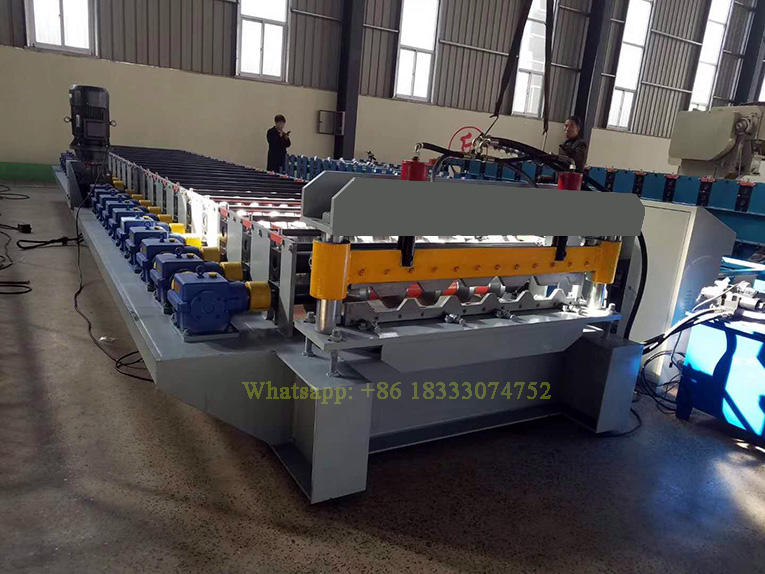

| Product Name:High Speed Gear Driving Way PBR Panel Roll Forming Machine | |

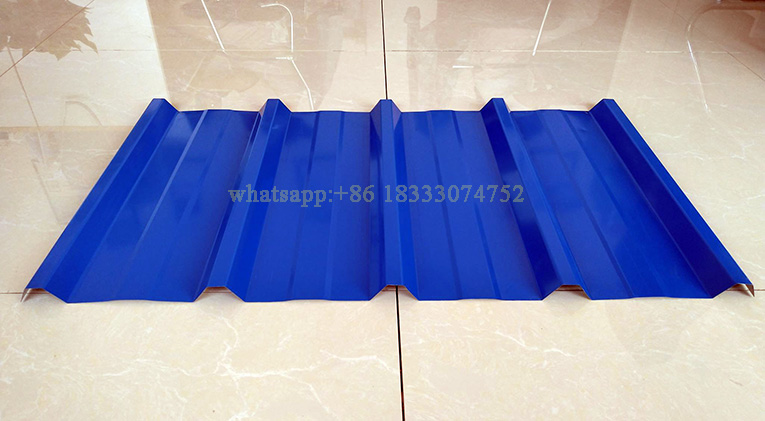

Main Forming Part Details: 1), Raw material: Color Steel Sheet Coil/Glavanized Steel Coil 2), Feeding Width : According to confirmed sheet profile drawing 3), Effective width : According to confirmed drawing 4), Thickness : 0.3-0.7mm 5), Machine Weight : About 4.0Tons 6), Dimension of machine: About 7.0m*1.4m*1.3m 7), Shaft station : 14 Stations 8), Rolling speed : 0-30m/min 9), Transmission: By Gear 10), Material of Frame : 300 H steel welding 11), Thickness of middle plate : 16mm 12), Diameter of Shaft : 70 mm (Solid Shaft) 13), Shaft materials : 45# Steel plated hard 14), Material of Roller: 45# Steel plated hard 15), Power of main motor : 4KW 16), Cutter materials: GCr12 steel with quenched treated 60-62°C 17), Power of pump station: 4KW 18), Control system : PLC Control Box 19), Cutting way : Automatic Manual two control way 20), Cutting accuracy: ±2mm 21), Voltage: 380V/50HZ,3PH ( also can do based on your requirement) 22), Machine color : Do based on you need | 1), Sheet Profile:
2) , Hydraulich Cutting Device:
|
| Main Machine Parts With The Production Line Together | |
1), Hydraulic Cutter........................................................................................................ 1 Set | |
2), PLC Control device....................................................................................................1 Set | |
| 3), Pump Station..............................................................................................................1 Set | |
| 4), Motor..........................................................................................................................1Set | |
5), Feeding device............................................................................................................1 Set | |
6), Manual Decoiler..........................................................................................................1 Set | |
