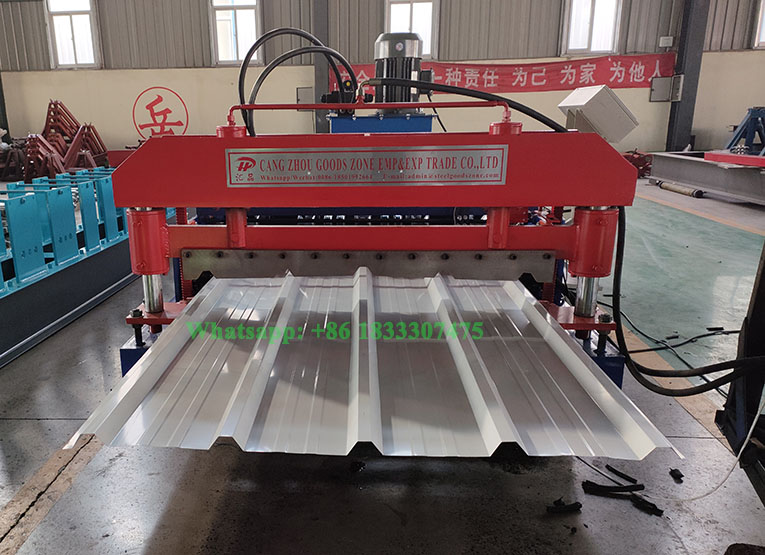

Peru Tr4 Roof Sheet Roll Forming Machine ( Maquina Para Hacer Calaminas De Tr4 )

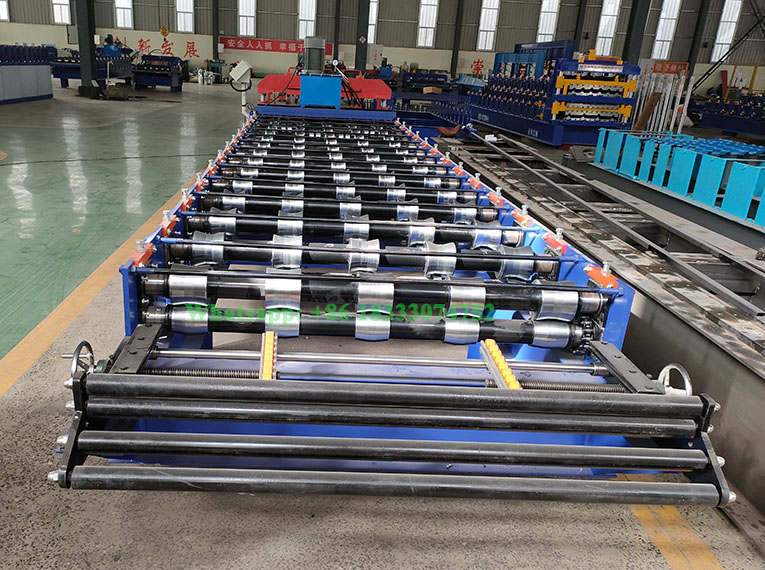

1, Main Forming Machine Details:
1), Raw material: Color Steel Sheet Coil/Glavanized Steel Coil
2), Feeding Width : 1200mm
3), Thickness : 0.3-0.7mm
4), Machine Weight : About 2.8Tons
5), Dimension of machine: About 6.6m*1.5m*1.35m
6), Shaft station : 14 Stations
7), Rolling speed :0-19m/min
8), Transmission: By chain
9), Size of Chain : 1.0 inch
10), Material of Frame :300 H steel welding
11), Thickness of middle plate : 16mm
12), Diameter of Shaft :70 mm
13), Power of main motor : 5.5KW
14), Cutter materials: GCr12 steel with quenched treated 60-62°C
15), Control system : PLC Control

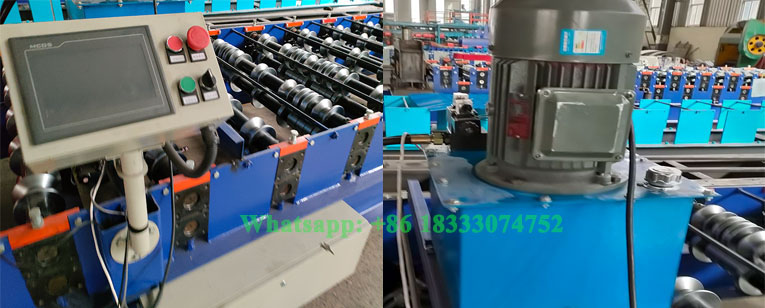

2, PLC And Pump Station:
You can set the running speed/length/batch/pieces of the steel sheet on the PLC computer touch screen,Then
the machine can running auto or you can choose the manual mode.
Hydraulic system：
Using for punching holes/punching logo/cutting steel sheet need put hydraulic oil into the oil tank
