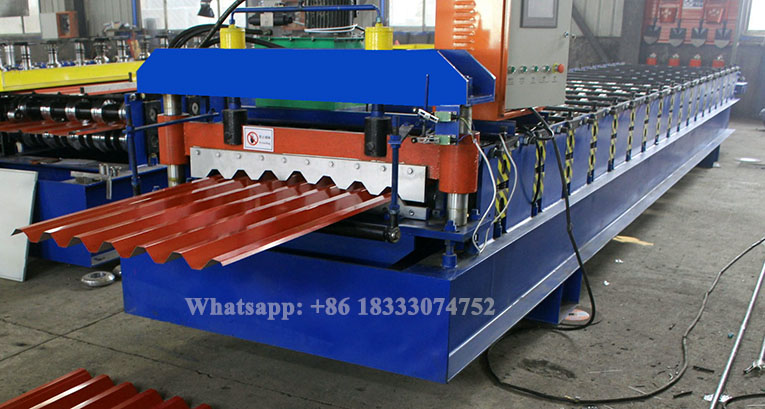

750 Model Prepainted Color Coated Metal Steel Trapezoid IBR Roof Panel Roofing Sheet Machine
1, Machine Working Flowing:
2, Components of machine:
1), Manual decoiler :1 set(Capacity: 5 tons)
2), Roll-Forming M/C : 1set
3), Hydraulic Cutting : 1set
4), Hydraulic station : 1set
5), PLC Control System : 1set
6), Protective Net : 1set
7), Product Rack (un-powered) : 1 set ( 3 meters)
3, Machine Details:
1) Machine structure : 300H Steel
2) Main power : 5.5KW
3) Forming stations : 13 stations
4) Driving Way : by Chain
5) Diameter Of Shaft : 70mm
6) Max Rolling Speed : 0-15m/min
7) Thickness : 0.35-0.8mm
8) Material width : 914mm~1250mm
9) Material of roller : 45# Steel, with quenched treatment
10) Material of blade mould : Cr12, quenched 58-62
11) Length cutting tolerance : +/-1.0mm
12) Electrical requirement : 380V,50Hz,3P
