Ribtype TR4 IBR Panel Machine
Details

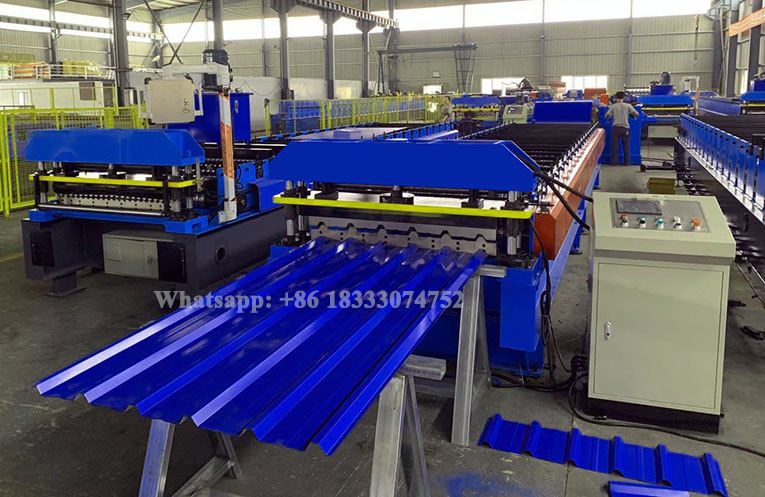

R Panel Steel Roof Sheet Roll Forming Machine

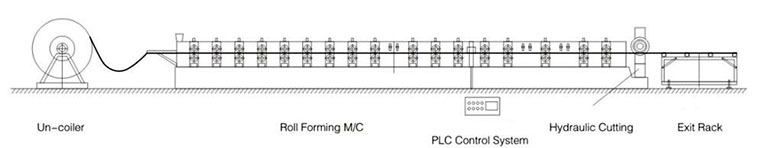

1, Working Flow Of R Panel Steel Roof Sheet Machine
2, What is the specification of R Panel Steel Roof Sheet Machine?
1), Length of the main part : about 7000*1500*1400mm
2), Weight of main part : 4.5T
3), Voltage:380V/50HZ 3Phase ( can be optional)
4), Roller fixer:middle plate
5), Frame:350H steel ( can be optional)
6), Drive mode:chain
7), Material of rollers:45#steel, surface hard chromium plating.
8), Material of shafts:45#steel
9), Material of mould:Cr12 quenched
10), Power supply:hydraulic power
3,R Panel Steel Roof Sheet Machine
