R101 Roof Sheet Roll Forming Machine
1. Main Technical Dates:
1), Raw material: Color Steel Sheet Coil/Glavanized Steel Coil
2), Feeding Width : 914-1220mm
3), Effective width : According to our client's requirement
4), Thickness : 0.3-0.7mm
5), Shaft station : 14 Stations
6), Working Speed : 0-19m/min
7), Transmission: By chain
8), Size of Chain : 1.0 inch
9), Material of Frame :H Steel Welding
10), Thickness of middle plate : 16mm
11), Diameter of Shaft : 70 mm (Solid Shaft)
12), Material of Roller : 45# Steel plated hard
13), Power of main motor : 5.5KW
14), Cutter materials : GCr12 steel with quenched treated 60-62°C
2, Main Machine Parts:

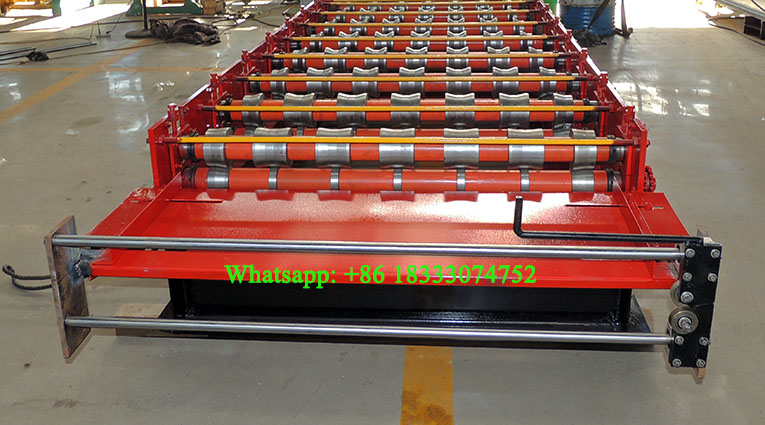

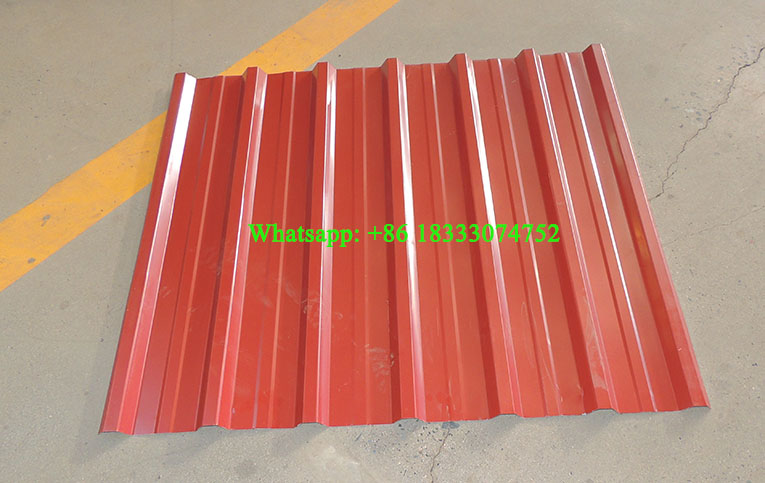

1), Machine Products
2), Machine Cutter:
3), Machine Pre-hand control cutter:
We add this part on the machine, it more easy to move the steel coil after the machine finish using.
