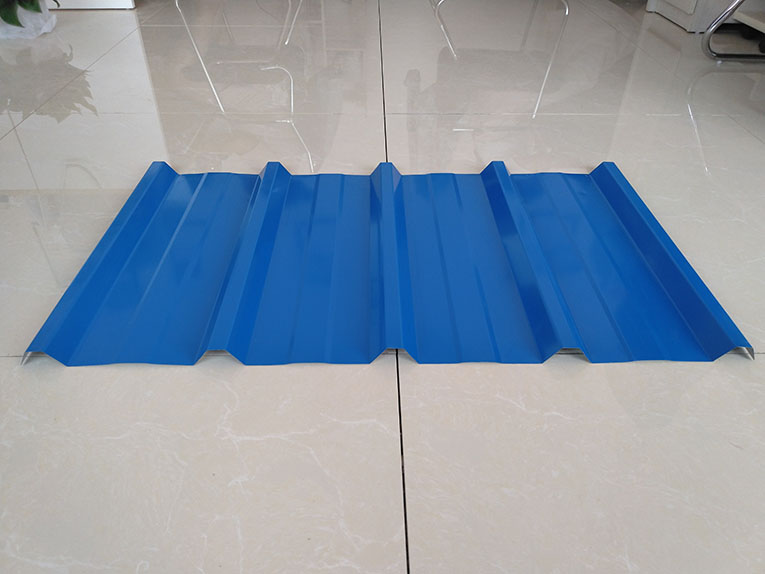

Ribtype TR4 IBR Panel Machine
Details

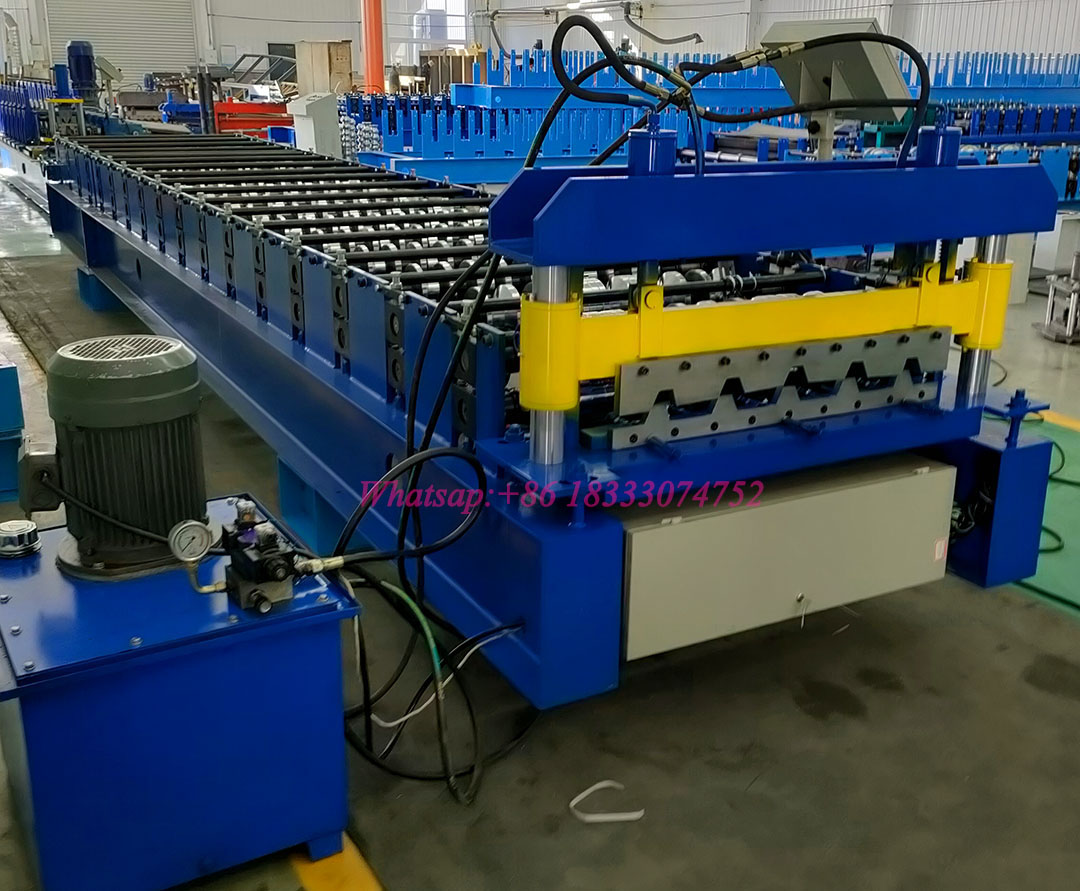

Steel Profile Roof Tile Roll Forming Machine
1) Machine structure : 300H Steel
2) Main power : 5.5KW
3) Forming stations : 13 stations
4) Driving Way : by Chain
5) Diameter Of Shaft : 70mm
6) Max Rolling Speed : 0-15m/min
7) Thickness : 0.35-0.8mm
8) Material width : 914mm~1250mm
9) Material of roller : 45# Steel, with quenched treatment
10) Material of blade mould : Cr12, quenched 58-62
11) Length cutting tolerance : +/-1.0mm
12) Electrical requirement : 380V,50Hz,3P
