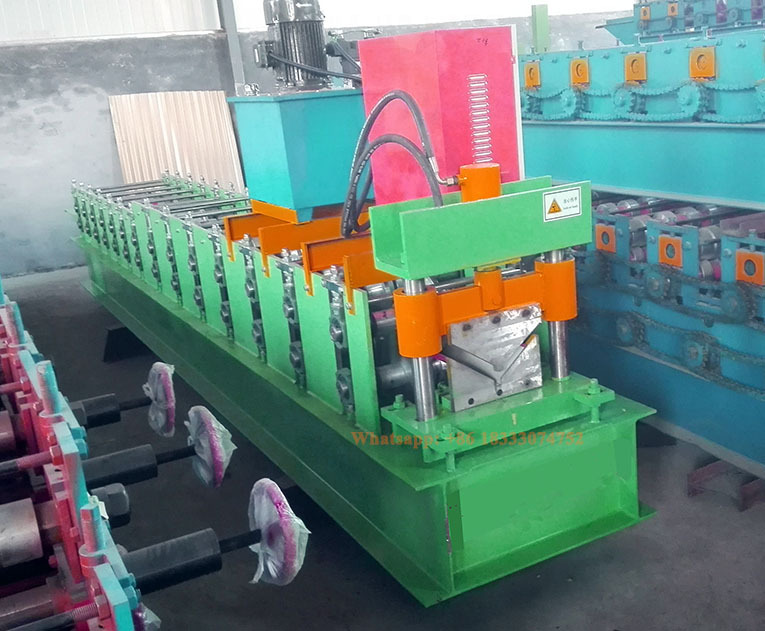

Metal Ridge Tile For Roofing Roll Forming Bending Machine
Metal Ridge Tile For Roofing Roll Forming Bending Machine is used to produce metal roof ridge tile which is one type popular metal construction material,this material is usually used with other metal roof sheets,they are widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc.It has the advantage of beautiful, classical appearance and grace taste.
Machine Details Description:

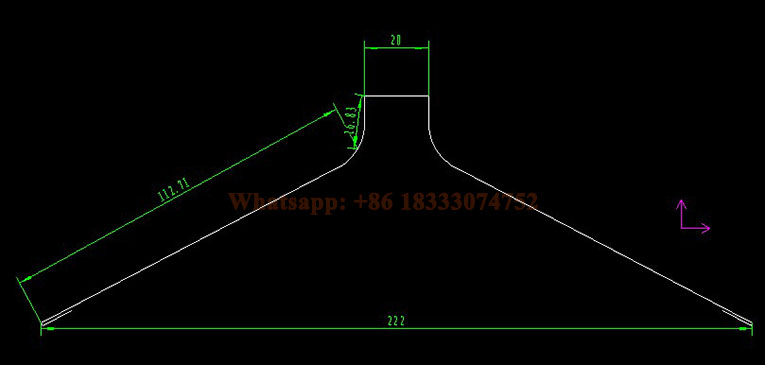

1, Product Drawing:

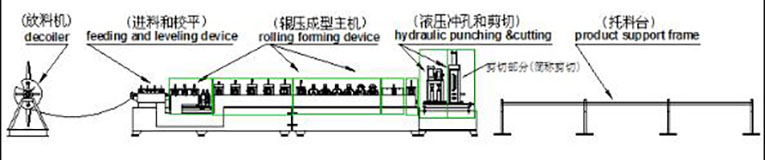

2, Machine Components：
3，Main Technical Dates:
1), Decoiler For Steel Coil:
Coil inner diameter : 450-550mm
Out Diameter : 1200 mm
Coil max width : 500mm
Max carrying capacity : 3000kg
2), Main Forming Part:
Processing Material : PPGI,GI
Processing Thickness(mm): 0.3-0.7mm
Material of Rollers: 45# steel, with hard chrome coated
Diameter of Shaft: 65mm
Production Speed: 0-15m/min
Roller Driven: Decelerating Motor Chain Transmission
Cutting Model: Hydraulic Profile Cutting
Length Measurement: Encoder
Control Style: PLC
Operation Model: Touching Screen
Total Power: 8kw
Testing Material: Q195
