Ridge Cap Sheet Machine
Details

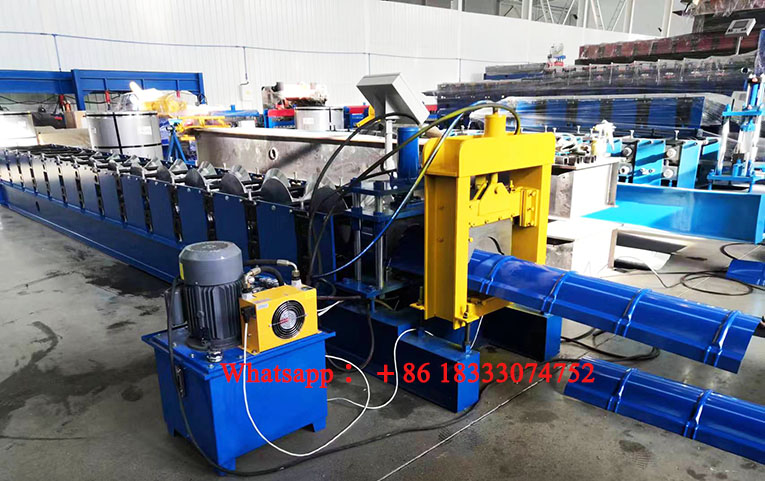

Ridge Cap Roof Making Machine
1, Ridge Cap Roof Making Machine Details :
Material: Colored Steel plate, galvanized board, Aluminum plate
Thickness: 0.3-0.8 mm
Roller material: High grade NO. 45 forged steel with 0.05mm hard chrome plating
Shaft material: High grade NO. 45 carbon wrought steel
Cutting blade: Cr12 mould steel with quenched treatment
Diameter of shaft: 60 mm
Forming steps : 12 rows
Speed: 15-20 m/min
Power: 4 KW
2, The Finished Product Of Ridge Cap Roof Making Machine :
