Ripple Roofing Sheet Machine
Details
Corrugated Metal Roofing Sheet Tile Making Machinery

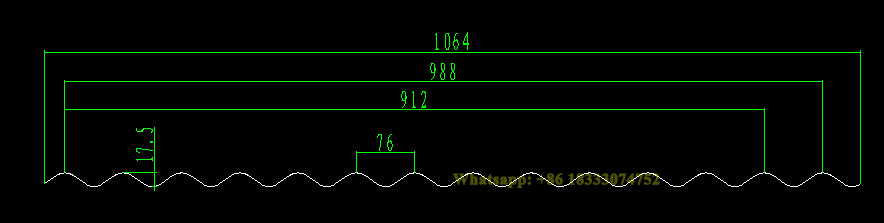

1, Machine Drawing:

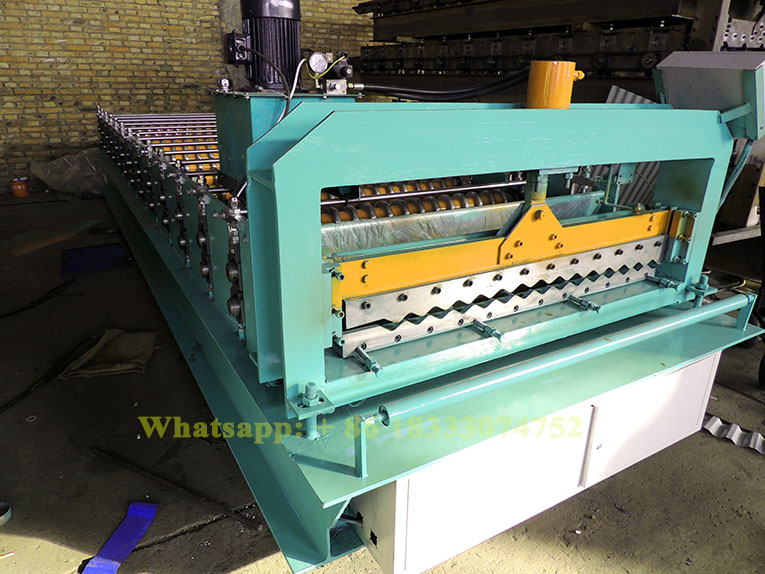

2, Main Machine Description:
1), Feeding material: Colored steel plate / aluminum plate/Galvanized Steel Coil
2), Width of the plate : 914mm-1250mm
3), Thickness of the plate: 0.3-0.8mm
4), Dimensions :6000mm*1500mm*1200mm
5), Diameter of the rollers: Φ75mm
6), Rollers Station: 13rows
7), Productivity：8-15m/min
8), Total power :5.5+3kw
9), Voltage: 380V 50Hz 3phase or at buyer's demand
10),Side board thickness:16mm
