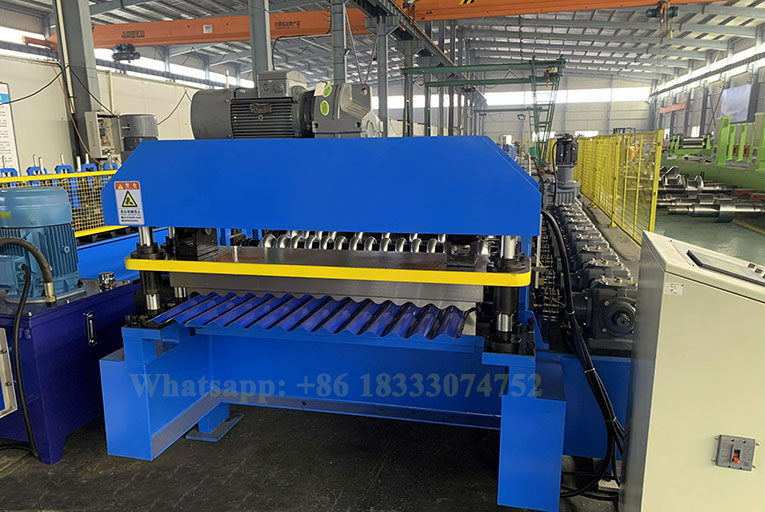

Corrugate Round Roofing Roll Forming Machine
1, Product Description Of Corrugate Round Roofing Roll Forming Machine
Corrugated sheets machine is designed to make the corrugated sheets in batch fully automatically. This machine is good which can produce various width of sheets without any mould change, only adjusting the feeding guiding.
2, Host Corrugate Round Roofing Roll Forming Machine
1). Feeding device : The inlet can be adjusted
2). Hydraulic cutting : PLC add control system
3). Number of forming rows: 19 rows
4). Roller shaft: Roller shaft material: 45# steel Dia:80mm
5). Roller: Roller material: 45# steel quenching treatment, surface chrome-plating treatment
6). Tile box:Bluing process
7). Speed: 40m/min
8). Machine structure:Archway structure
9). Power :11w
10). Transmission: Gearbox
11). Frame structure: 500#H is internally welded with diagonally supported steel
3, Hydraulic Cutting Device Of Corrugate Round Roofing Roll Forming Machine
1).Cutting Length And Quantity: Controlled by PLC control system, users input required length and quantity on touch screen
2). Material Of Cutting Mold: Cr12Mov, HRC 60-62
3). Cutting Length Measuring: Encoder measuring; Ormon Brand
4).Hydraulic Station Power:4kw
5). Tolerance Of Cutting Length: +/-5mm
4, Control System Of Corrugate Round Roofing Roll Forming Machine
1). Frequency Converter:Delta
2). Screen : Touchable screen with buttons
3). Language : Chinese/English
4). Low-voltage electrical appliances : Schneider
5). Encoder: Omron
6). Features:It can control the cutting length, quantity, speed.
