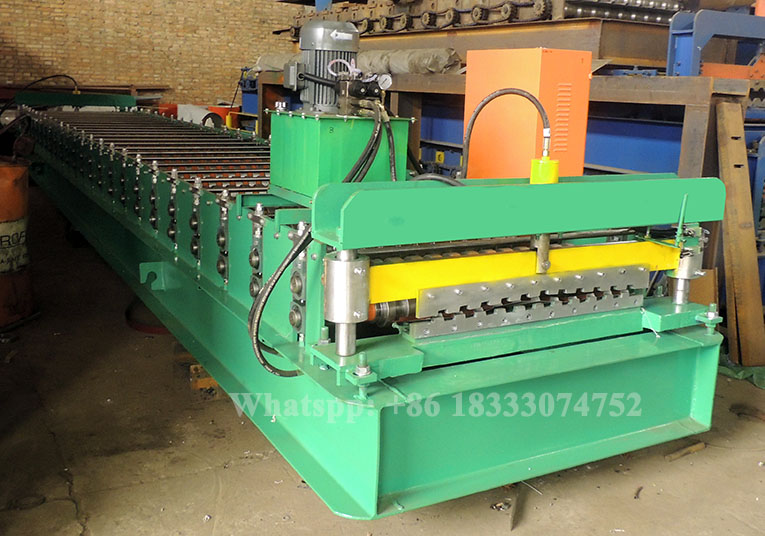

Austrian Rolling Shutter door Slat Roll Forming Machine

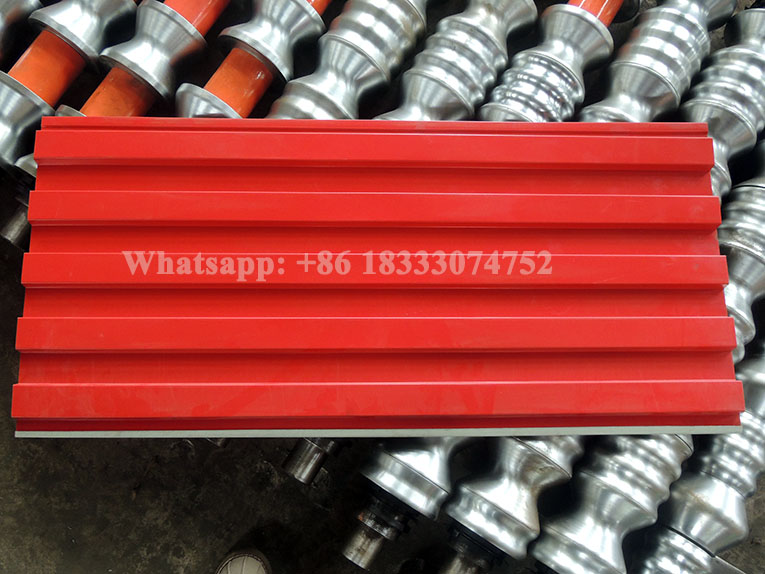

1, Machine's Production:

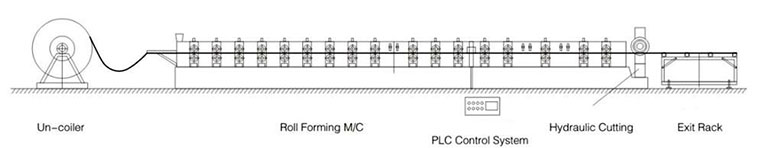

2, Machine Working Processing:
3, Details Of Austrian Rolling Shutter door Slat Roll Forming Machine:
1), Length of the main part : About 4500*900*1000 mm (L*W*H)
2), Weight of main part: 3 tons
3), Voltage : 380 V 50 HZ 3 Phase ( We also can customized according to our clients' requirement)
4), Frame type: Memorial arch frame
5), Drive mode: By Chain
6), Material of rollers: GCr 12 quench with 58-60°
7), Material of shafts: 45# steel with tempering
8), Diameter of shafts: φ 70 mm
9), Number of rollers : 13 rollers
10), Main power: 5.5 kw
11), Forming speed: 15-20 m/minute
12), Material thickness: 0.35-0.8 mm
13), Processing material: Galvanized sheet or aluminum sheet
