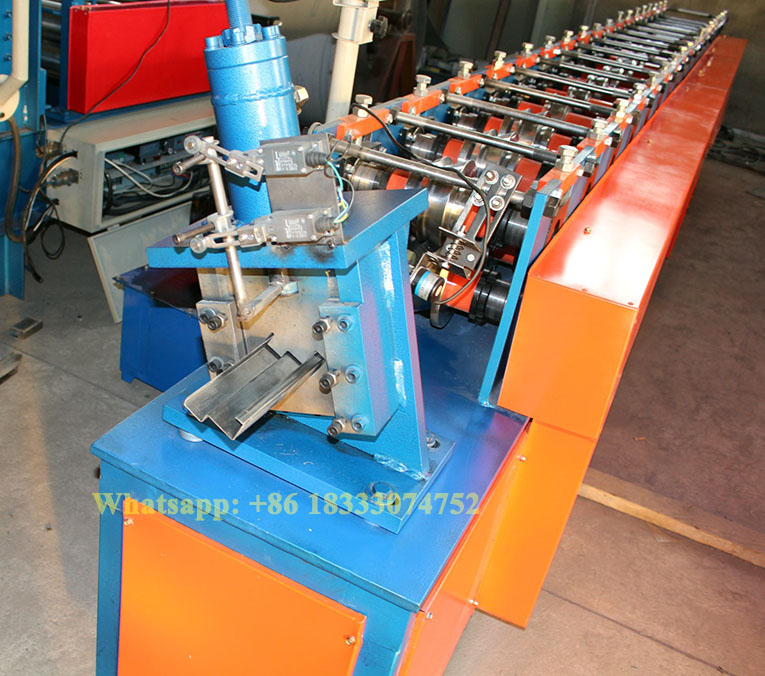

Galvanized Steel Door Frame Profile Making Machine
This steel door frame roll forming machine is including feeding, leveling machine, the first feeder, punch press, the second feeder and combination machine tools, strip of material installed in feeding shelf, described leveling machine feeding port and discharging port and feed port horizontal alignment, described the first feeder including step pushing device.
Main Technical Dates Of Door Frame Roll Forming Machine:
1), Processing material : Colored steel, galvanized sheet, or aluminium plate
2), Material thickness : 0.8-1.5 mm
3), Material hardness : 550 mpa---350 mpa

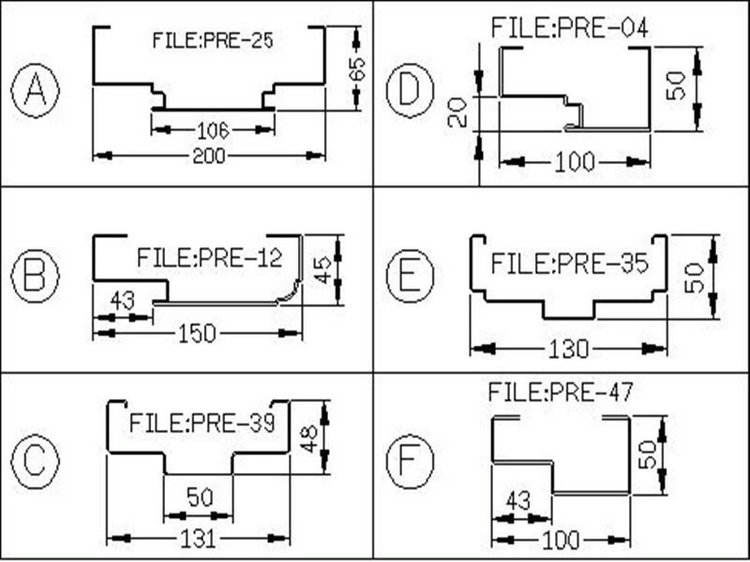

4), Material width : 200mm(according to the profile)
5), Formed width :101.6mm (according to the profile)
6), Forming speed : 12m/min
7), Working speed :8m/min
8), Voltage : 380V 50HZ 3Phase
9), Roller fixer : Guide column
10), Frame : 400 H steel
11), Drive mode : By chain
12), Material of rollers: 45# steel, surface hard chromium plating.
13), Material of shafts : 45# steel with tempering
14), Diameter of shafts : φ70mm
15), Number of rollers : 15 rollers
16), Main power : 5.5kw
17), Hydraulic power : 3kw
