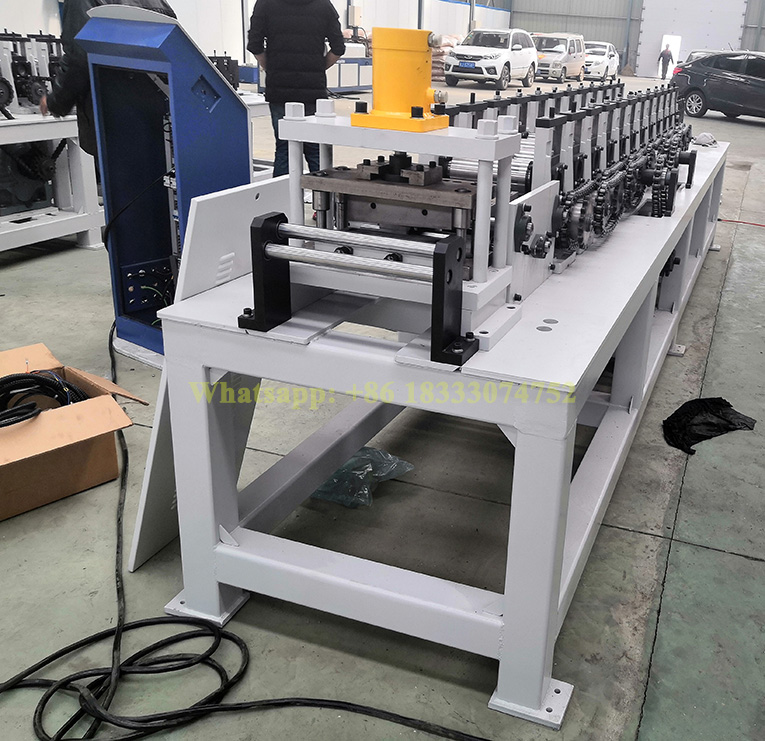

Spandrel Cladding Metal Sheet Roll Forming Making Machine

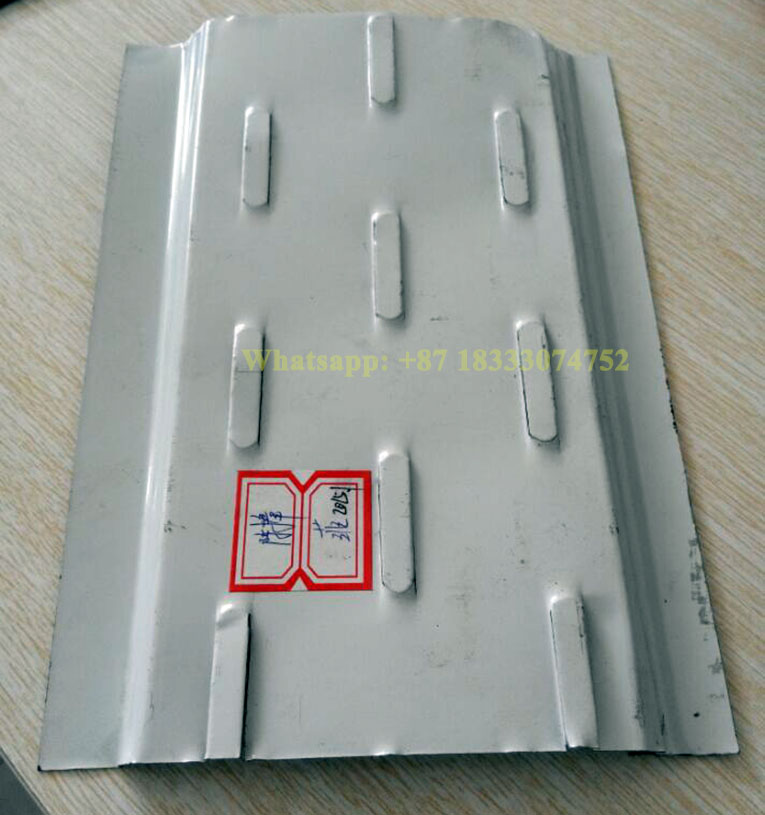

1, Products Produce By Spandrel Cladding Metal Sheet Roll Forming Making Machine:
2, Working Flow Of Spandrel Cladding Metal Sheet Roll Forming Making Machine:
Decoiler - Feeding and guilding - Roll forming - Cut as length - Out put sheet
3, Main Technical Dates Of Spandrel Cladding Metal Sheet Roll Forming Making Machine:
1), Middle plate : 16mm or according to machine demands,45#steel
2), Shaft diameter ：50mm (depends on different design)
3), Shaft material ：Solid shaft,high quality 45# forged steel,with anti-return pad
4), Chain : 1 inch according to machine demands
5), Number of rolls : Common 9 rolls-25rolls(according to different design)
6), Hydraulic motor ：4 kw or as actual requirement
7), Main motor : 4 kw
8), Reducer : 6# gear reducer
9), Cutting tolerance ：+/-1mm
10), Place of Origin : Hebei, China
11), Hydraulic pressure : 10-12Mpa according to the oil pump and pump motor
12), Cutting blade material ：Cr 12/CR12MOV, Heat treatment,HRC 58-60
13), Decoiler/uncoiler ：Manual decoiler according to customer requirement
