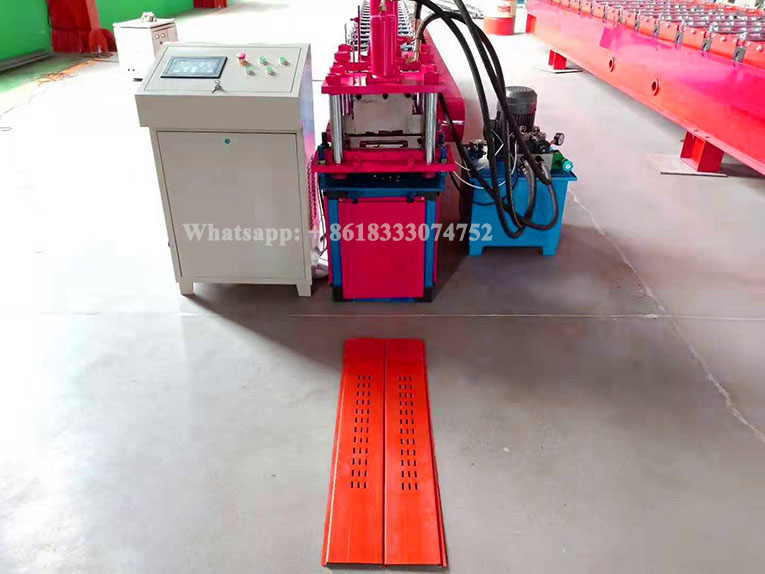

Spandrel Steel Profile Roll Fomer Making Machine
Specification：
1), Middle plate : 16mm or according to machine demands,45#steel
2), Shaft diameter : 50mm (depends on different design)
3), Shaft material : Solid shaft,high quality 45# forged steel,with anti-return pad
4), Chain :1 inch according to machine demands
5), Number of rolls : Common 9 rolls-25rolls(according to different design)
6), Hydraulic motor : 4 kw or as actual requirement
7), Main motor : 4 kw
8), Reducer : 6# gear reducer
9), Cutting tolerance ：+/-1mm
10), Place of Origin : Hebei, China
11), Work flow ：Decoiler - Feeding and guilding - Roll forming - Cut as length - Out put sheet
12), Package ：Standard export package
13), Delivery time ：from 20-25work days (it is be decided by the order quantity)
14), Hydraulic pressure ：10-12Mpa according to the oil pump and pump motor
15), Cutting blade material ：Cr 12/CR12MOV, Heat treatment,HRC 58-60
16), Certification ：ISO/CE
17), Decoiler/uncoiler ：Manual decoiler according to customer requirements
