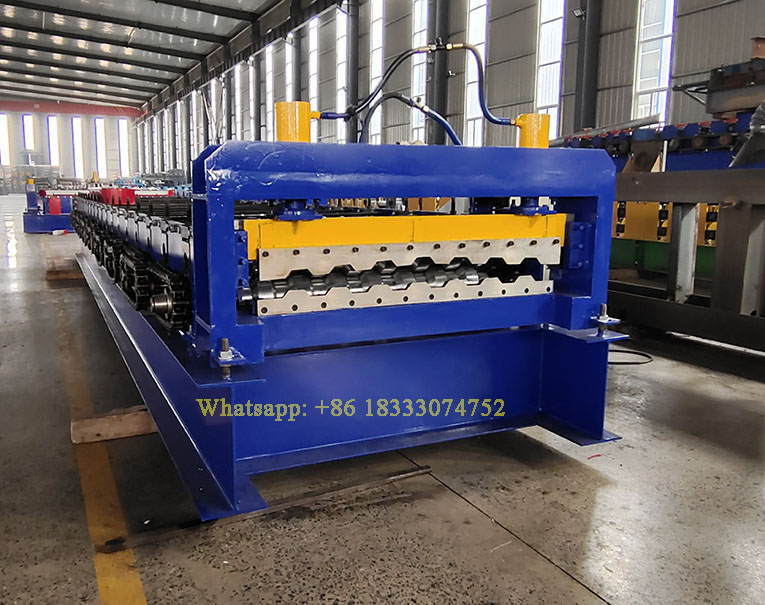

Galvanized Steel Metal Roof Decking Sheet Roll Forming Machine
1, Main Detailed Technical Date:
1), Raw material
Material spec: Colored steel sheet, galvanized steel sheet, aluminum sheet
2), Thickness of coil sheet: 0.8-1.2 mm
3), Material expand width: 1000mm
4), Efficiency width: 720mm
5), Roller material: High grade no. 45 forged steel with 0.05mm hard chrome plating
6), Shaft material: High grade no. 45 carbon wrought steel
7), Cutting blade: Cr12 mould steel with quenched treatment
8), Diameter of shaft: 70mm or as your requirement
9), Main frame: 350 H Steel
10), Forming steps: 22rows
11), Hydraulic station power: 11+11 kw
12), Hydraulic pressure: 10-12mpa
13), Controlling system: Famous plc computer control
14), Material of cutting table: Cr12 mould steel with quenched treatment
15), Hydraulic oil: 40# hydraulic oil
2, Main Machine :
1), Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment,with black treatment or Hard-Chrome Coating for options.
2), Body frame made from 400# H type steel by welding

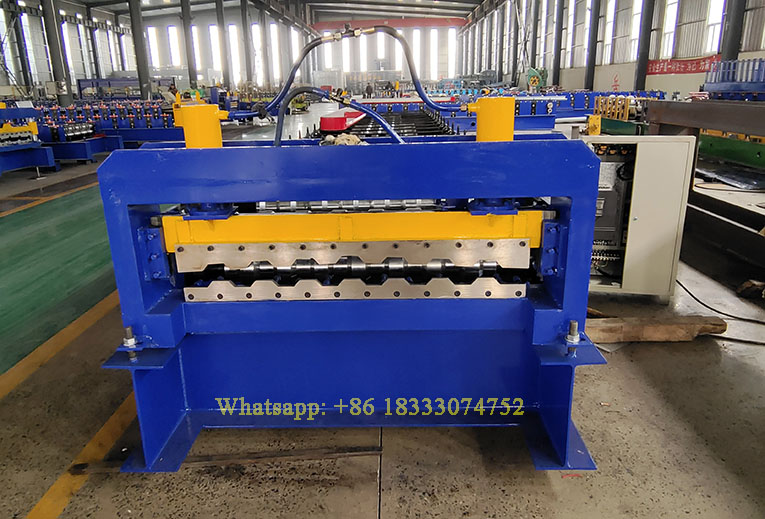

2), Cutter Device:
Made by high quality mold steel Cr12 with heat treatment.
Cutter frame made from high quality 20mm steel plate by welding.
