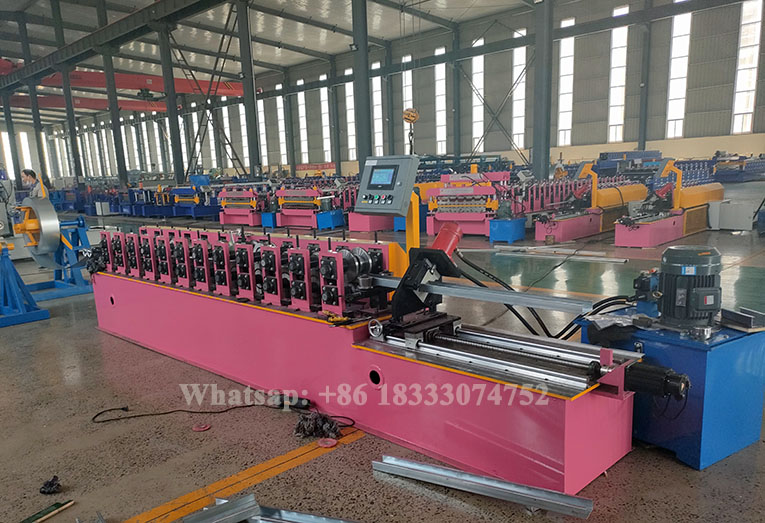

High Speed Steel C Metal Furring Roll Forming Machine

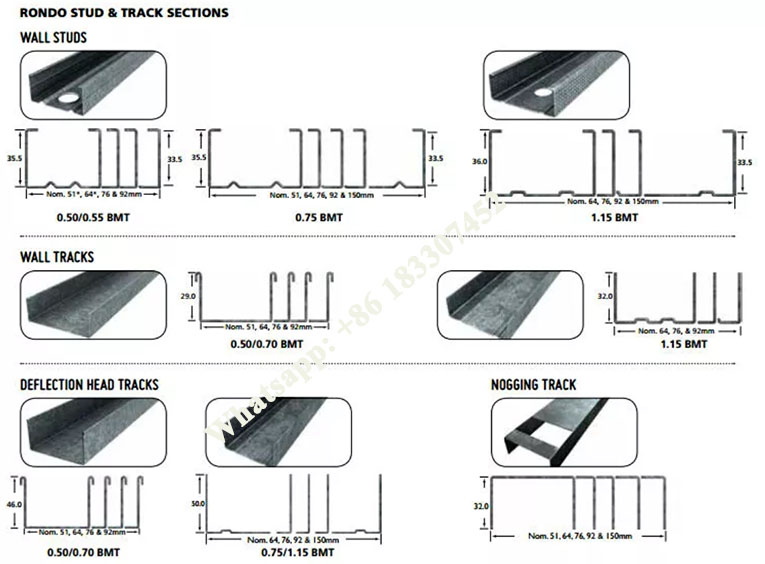

1, Product Drawing Of Steel C Metal Furring Roll Forming Machine:
2, Main Technical Dates Of Steel C Metal Furring Roll Forming Machine:
1), Raw material : Galvanized,Steel
2), Thickness ： 0.3-0.8mm
3), Max Coil width ： 300mm
4), Capacity ：1.5T

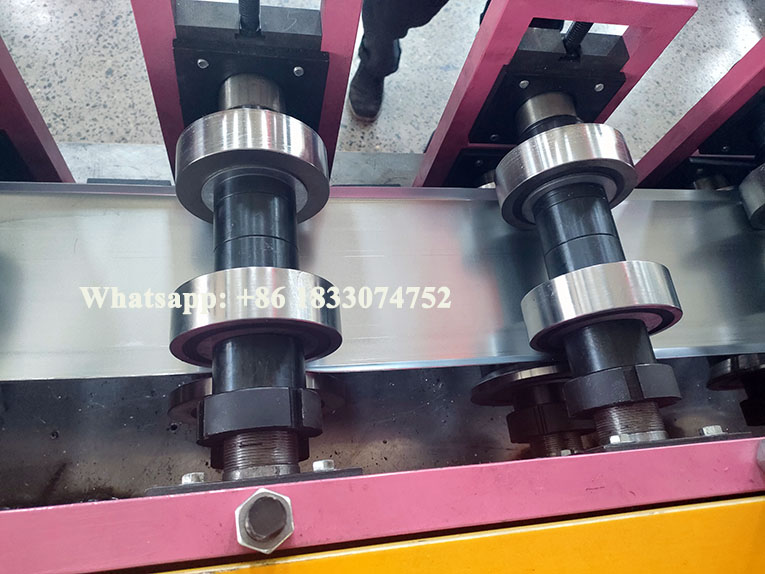

5), Forming steps ：10 rollers
6), Shaft diameter ： 60mm
7), Design type ：Memorial arch
8), Roller material ：GCr12MoV steel
9), Shaft material ：45# steel
10), Work speed ：0-25m/min
11), Transport ：By gear
12), Power of main machine ：5.5kw
13), Type of cutting ：Hydraulic

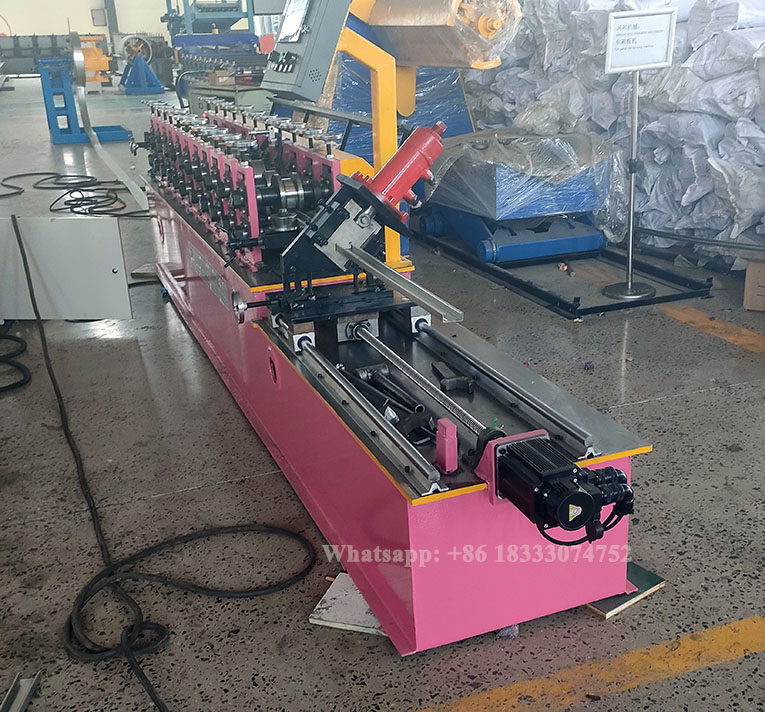

3, Hydraulic Cutting Device Of Steel C Metal Furring Roll Forming Machine
1). Cutting Length And Quantity: Controlled by PLC control system, users input required length and quantity on touch screen
2). Material Of Cutting Mold: Cr12Mov, HRC 60-62
3). Cutting Length Measuring: Encoder measuring; Ormon Brand
4), Our machine adopt No-stop cutting device:
