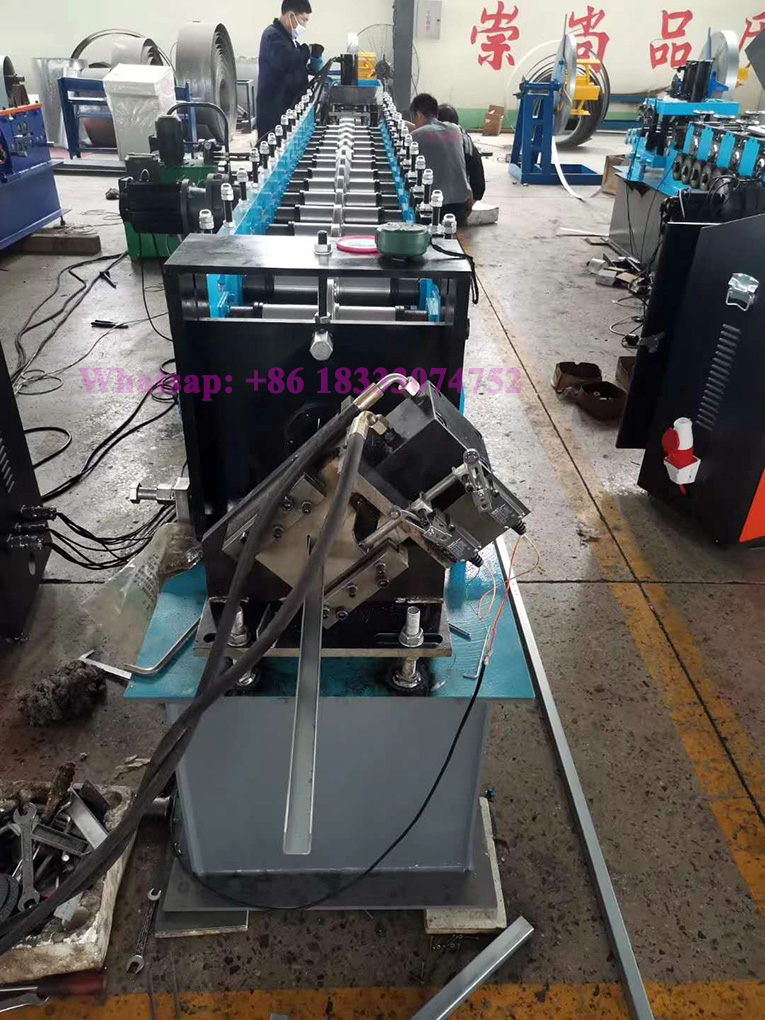

Steel drywall cd ud profile forming machine
1, Product Drawing Of Steel drywall cd ud profile forming machine:
2, Main Technical Dates Of Steel drywall cd ud profile forming machine:
1), Raw material : Galvanized,Steel
2), Thickness ： 0.3-0.8mm
3), Max Coil width ： 300mm
4), Capacity ：1.5T
5), Forming steps ：10 rollers
6), Shaft diameter ： 60mm
7), Design type ：Memorial arch
8), Roller material ：GCr12MoV steel
9), Shaft material ：45# steel
10), Work speed ：0-25m/min
11), Transport ：By gear
12), Power of main machine ：5.5kw
13), Type of cutting ：Hydraulic
3, Hydraulic Cutting Device Of Steel drywall cd ud profile forming machine
1). Cutting Length And Quantity: Controlled by PLC control system, users input required length and quantity on touch screen
2). Material Of Cutting Mold: Cr12Mov, HRC 60-62
3). Cutting Length Measuring: Encoder measuring; Ormon Brand
4), Our machine adopt No-stop cutting device.
