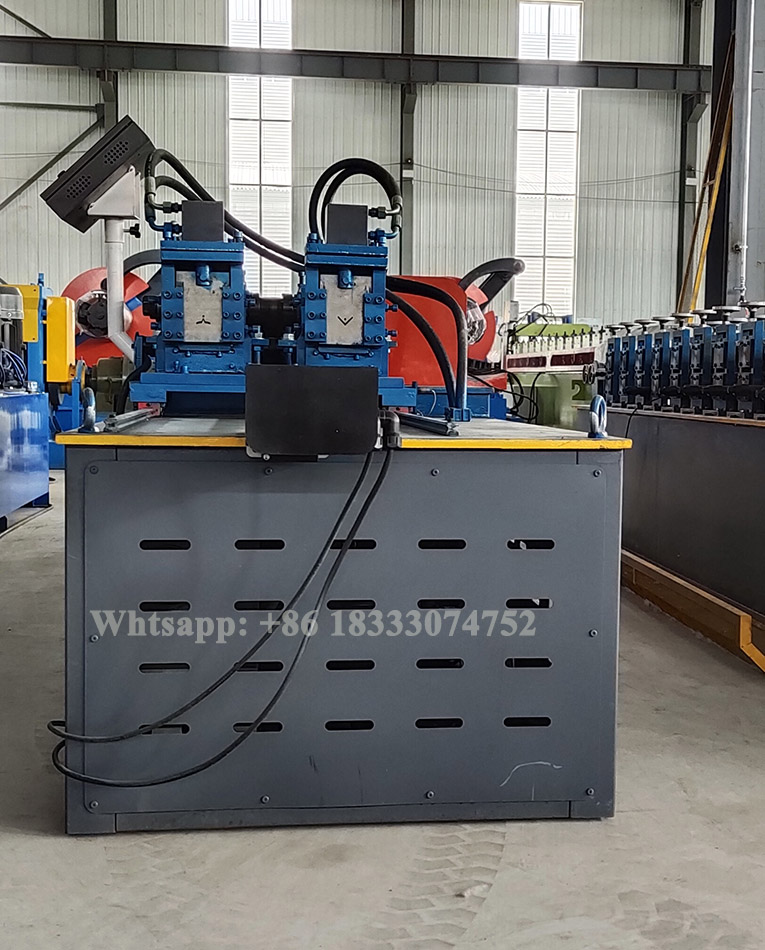

Double Ceiling metal V bar frame roll forming machine
The finished galvanised steel C stud, U track, channel, v angle, furring panels made by our light keel sheets roll forming machines offer builders a competitive alternative to traditional wood trusses. The advantages of this roll forming machine are realizing material efficiency, ease of fabrication, simplicity of erection, and improved safety of material handling. This machine provides significant improvements over other light gauge steel trusses currently available. Flexibility and design advantages allow architects, engineers, contractors and owners exceptional versatility and performance characteristics not available with any other type of truss material.
Main Details Of Double Ceiling metal V bar frame roll forming machine:
1), Raw material : Galvanized steel
2), Thickness : 0.3-0.8mm
3), Inner Diameter : 450-550mm
4),Max Coil width : 300mm
5), Capacity : 1.5T
6), Forming Steps: 10 rollers
7), diameter : 50mm
8), Design type : Memorial arch
9), Roller material: GCr12MoV steel
10), Shaft material: 45# steel
11), Work speed : 0-25m/min
12), Transport : By gear
13), Power of main machine:5.5kw
14), Type of cutting : Hydraulic
15), Cutting tolerance: ±1mm
16), Cutter : Gcr12
17), Hydraulic oil: 46#
18), Hydraulic power : 4kw
19), PLC Brand : Delta(as your requirement)
