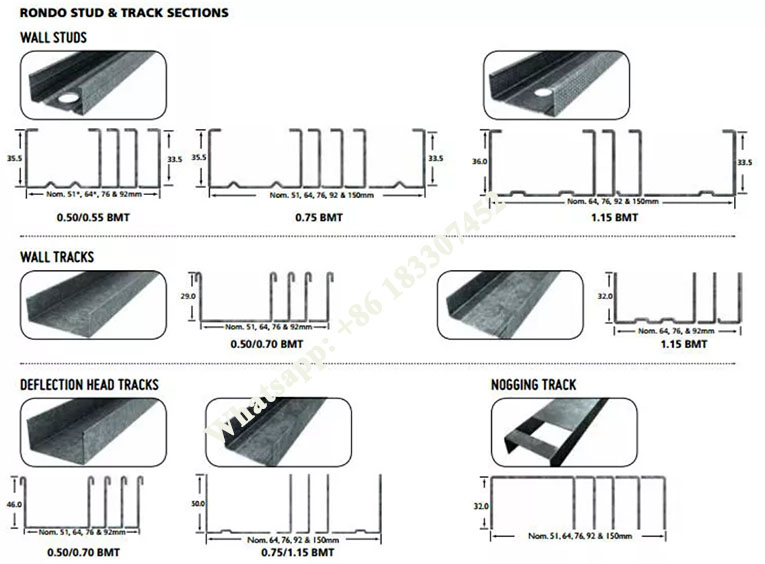

Drywall partition ceiling C section CD UD CW UW stud and track roll forming machine
Drywall partition ceiling C section CD UD CW UW stud and track profile is weldly used in the celling and drywall construction. Compared with cement construction and wooden construction,
Steel frame is more light and durable.Thanks to these advantages, C/U/Omega stud is welcomed in construction field.

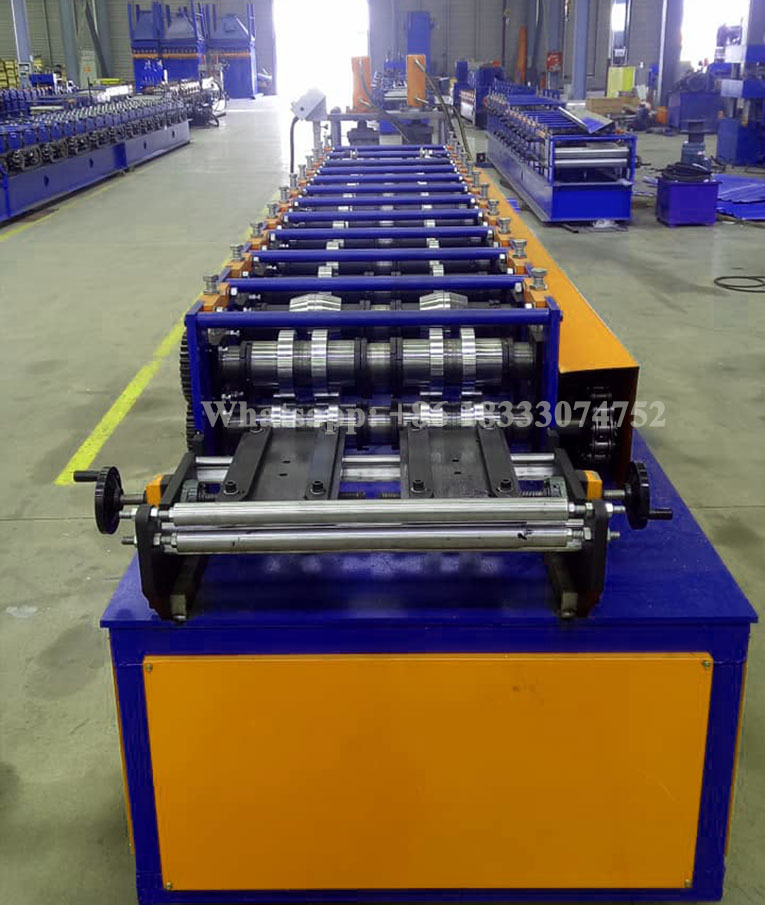

2. Roll forming machine
1) Machine structure:cast iron roller fixer
2) Main power:7.5KW
3) Forming stations:12 stations
4) Way of drive:by gear
5) Diameter of shaft:50mm
6) Max rolling speed: 0-45m/min
7) Thickness: 0.5-1.0mm or as customer's request
8) Material width:100mm~300mm
9) Material of roller:CR12 with quenched treatment
10) Material of blade mould:Cr12, quenched 58-62

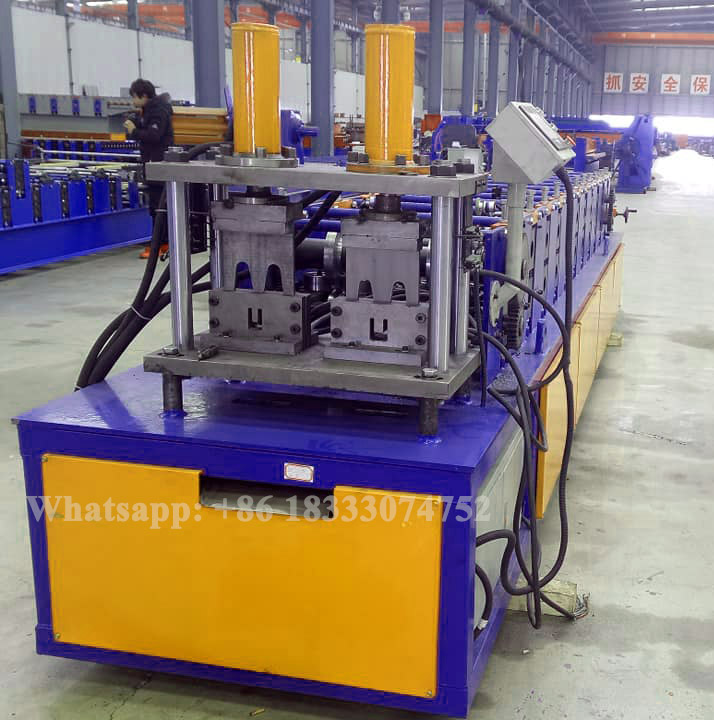

11) Way of cutting:hydraulic mould cutting(flying cut,cut without stop) with SERVO MOTOR DRIVED
12) Length cutting tolerance:+/-1.0mm
13) Electrical requirement:380V,50Hz,3P
