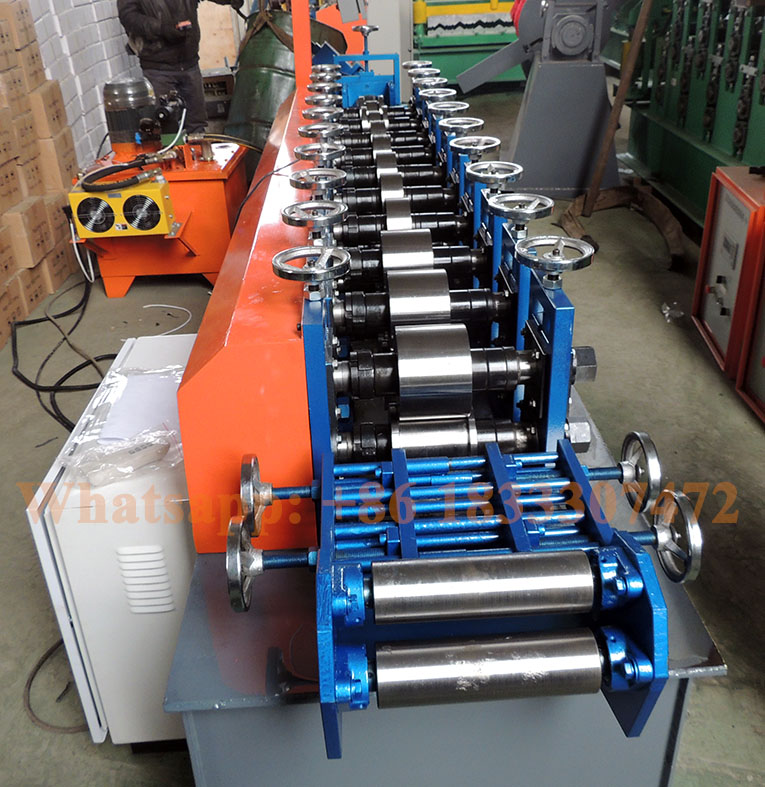

Light gauge steel framing machine
This C U Light gauge steel framing machine is fully automatic and high speed producing continuously, one set of forming rolls can produce various sizes of Stud and Runner just by simply and easily changing the spacers, this enables the production of different sizes products on the same rollers.

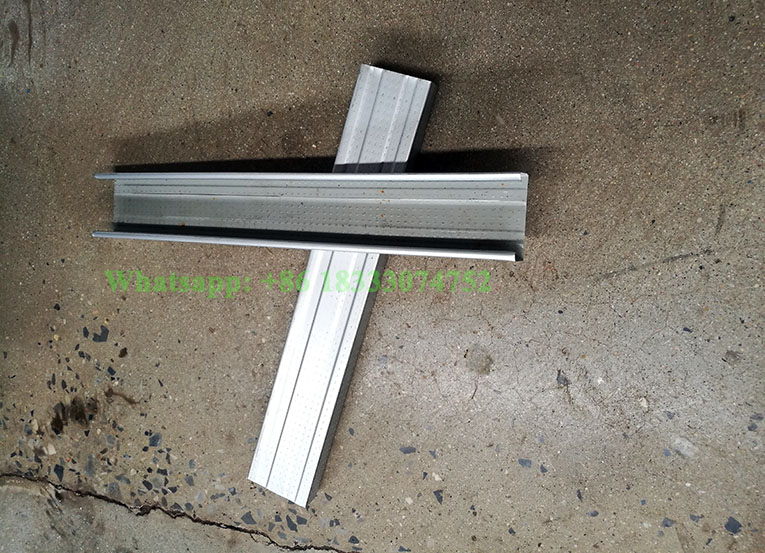

1, Light Gauge Framing Drawing:
2, Light gauge steel framing machine Details:
1), To ensure the product shape and precision, we adopt welded sheet structure, gear transmission.
2), Roller material:GCr12Mov
3), Work speed: 0-40 m/min
4), Frame:Middle plant welded structure
5), Roller shaft material:45# steel with tempering treatment
6), Transmission:by gear drive

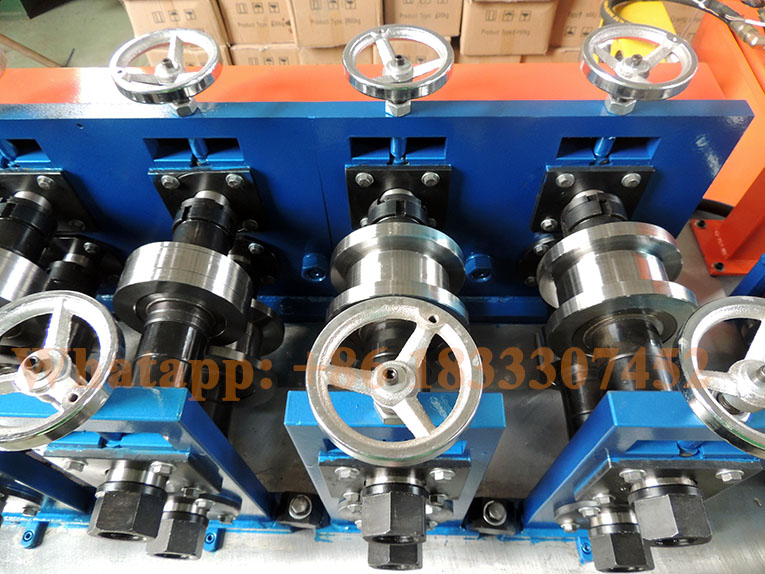

7), Roller station:12 stations
8), Main power:5.5 KW
9), Voltage:380V/50HZ 3Phase or as customer's requirement
10), Cutting system
11), Cutter material:Cr12 with quenched
12), Drive type:By pillar type cylinder

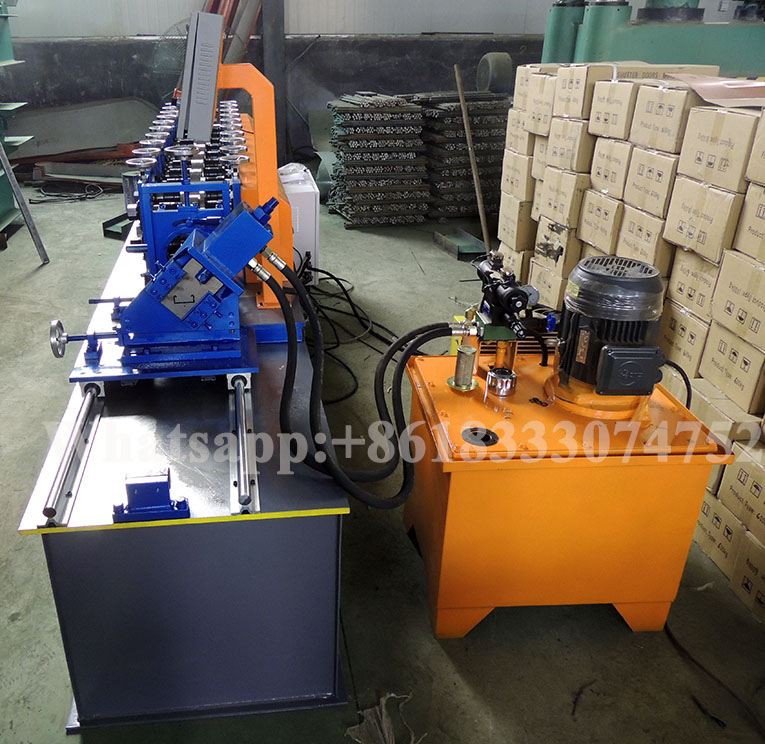

13), Hydraulic pump station
Hydraulic oil: 46# oil
Hydraulic motor power: 5.5 KW
;
