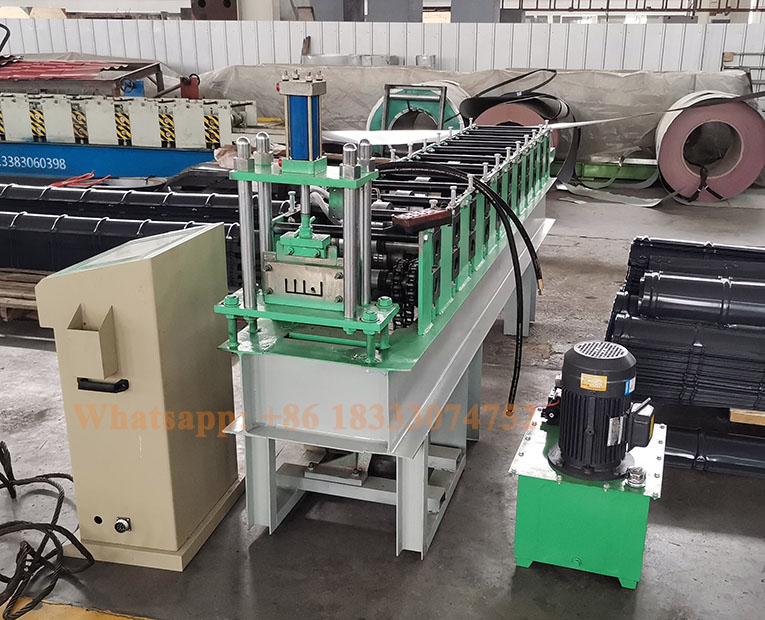

Stable working metal channel purlin furring omega profile making machine
1, Technical Parameter
1), Raw material: GI
2), Material thickness: 0.3-0.8 mm
3), Material hardness: 195-350 MPA
4), Uncoiling width: 550 mm
2, Decoiler
1), It used to support the steel coil and uncoil it on a turntable way.
2), We choose 3 T decoiler for you.
3, Main roll former
1), To ensure the product shape and precision, we adopt welded sheet structure, gear transmission.
2), Roller material: GCr12Mov
3), Work speed: 0-40 m/min
4), Frame: Middle plant welded structure
5), Roller shaft material:4 5# steel with tempering treatment
6), Transmission: by gear drive
7), Roller station:12 stations
8), Main power: 5.5 KW
9), Voltage:380V/50HZ 3Phase or as customer's requirement
10), Cutting system : Cutter material:Cr12 with quenched
11), Drive type:By pillar type cylinder
4, Hydraulic pump station
Hydraulic oil: 46# oil
Hydraulic motor power: 5.5 KW
Feature: with cooling system on it to ensure the oil always in a constant temperture, won't influence the cutting system working.
And our hydraulic oil pump station use a large box to ensure can provide enough hydraulic oil to cutting system working.
5, PLC control system
The PLC system can control the cutting quantity and length. (All the brand can be change by your requirement)
PLC brand: DELTA brand
Frequency brand: DELTA brand
Screen type:touch screen with buttons on it.
