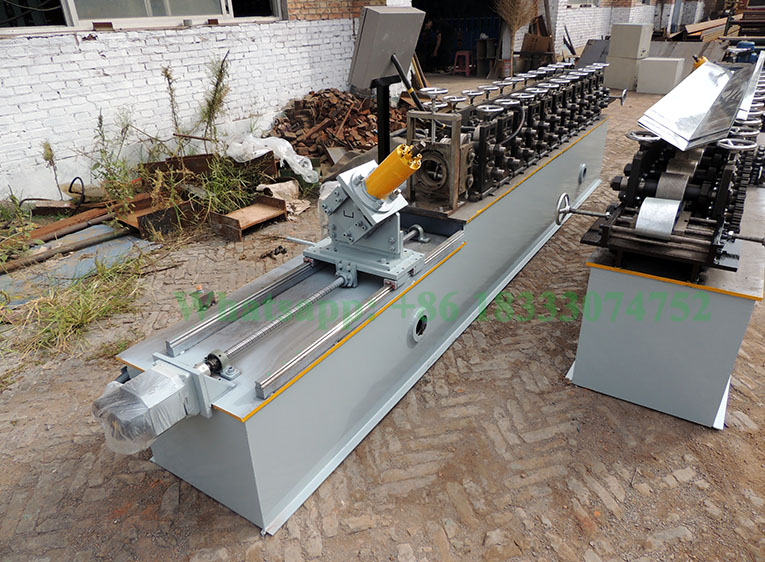

| Product Name: Galvanized Steel U Track Ceiling Roll Forming Machine | |

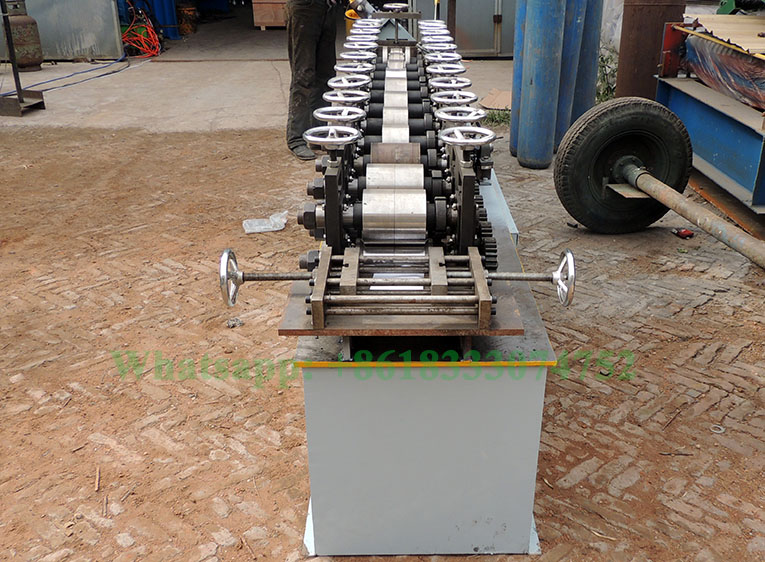

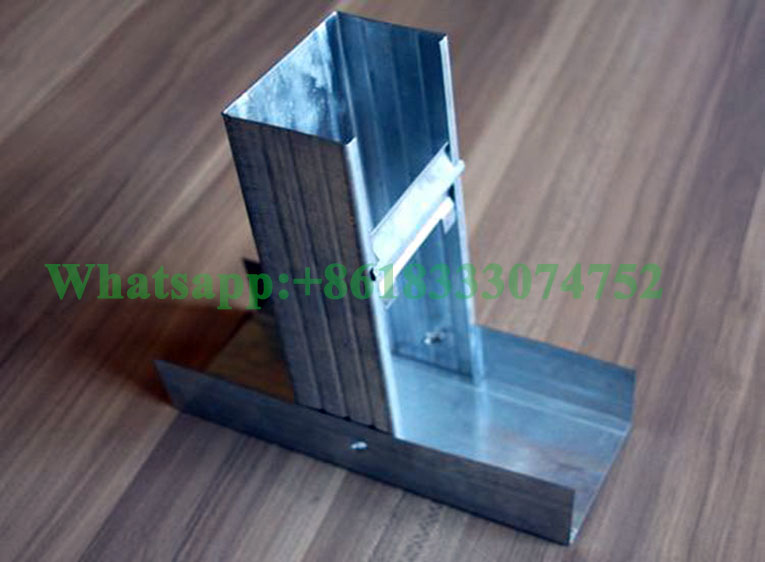

Main Forming Part Details: 1), Raw material: Color Steel Sheet Coil/Glavanized Steel Coil 2), Feeding Width : Customized 3), Effective width : According to confirmed sheet drawing 4), Thickness : 0.3-1.0mm 5), Machine Weight : About 3.5Tons 6), Dimension of machine: About 6.0m*1.4m*1.3m 7), Shaft station : 14 Stations 8), Rolling speed : 0-16m/min 9), Transmission: By chain 10), Size of Chain : 1.0 inch 11), Material of Frame : Square Box 12), Thickness of middle plate : 20mm 13), Diameter of Shaft : 70 mm (Solid Shaft) 14), Shaft materials : 45# Steel plated hard 15), Material of Roller: 45# Steel plated hard 16), Power of main motor : 4KW 17), Cutter materials: GCr12 steel with quenched treated 60-62°C 18), Power of pump station: 4KW 19), Control system : PLC Control Box 20), Cutting way : Automatic Manual two control way 21), Cutting accuracy: ±2mm 22), Voltage: 380V/50HZ,3PH ( also can do based on your requirement) 23), Machine color : Do based on you need | 1, Products of Galvanized Steel U Track Ceiling Roll Forming Machine

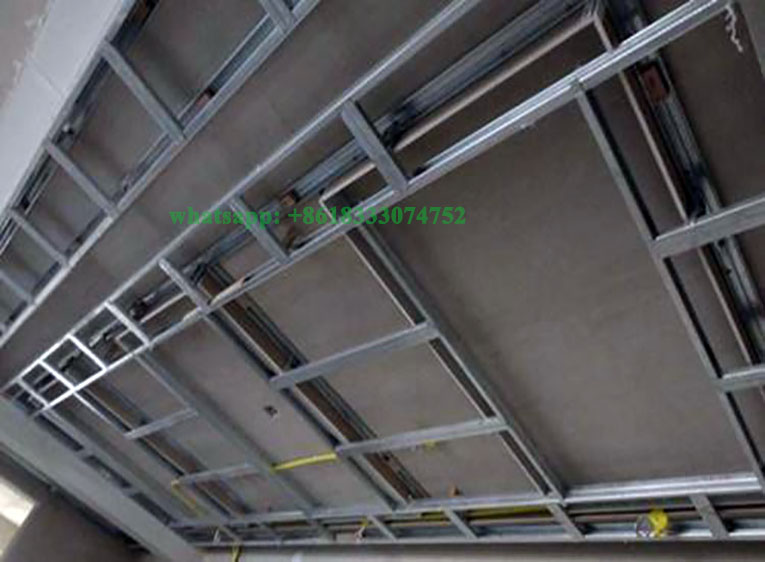

Usage:
|
| Main Machine Parts With Galvanized Steel U Track Ceiling Roll Forming Machine Together | |

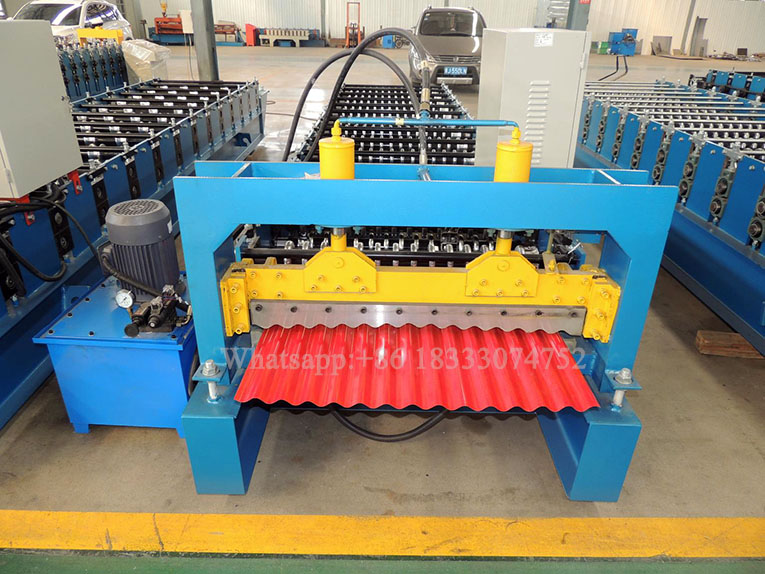

1), Hydraulic Cutter................................ 1 Set This model shearing cutter , its materials is called slitting welding. New user choose this model cutter more better. |   |
2), PLC Control device............................1 Set | |

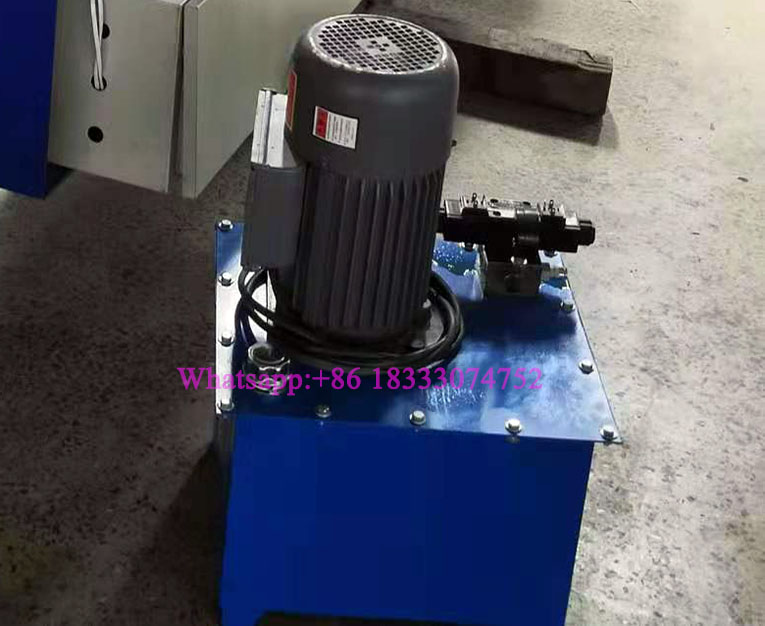

| 3), Pump Station......................................1 Set |  |
| 4), Motor.....................................................1Set | |
5), Feeding device....................................1 Set |  |
6), Manual Decoiler.................................1 Set | |
More details about the Galvanized Steel U Track Ceiling Roll Forming Machine, please contact us! | |
