Tilespan Qtiles Roof Machine
Details

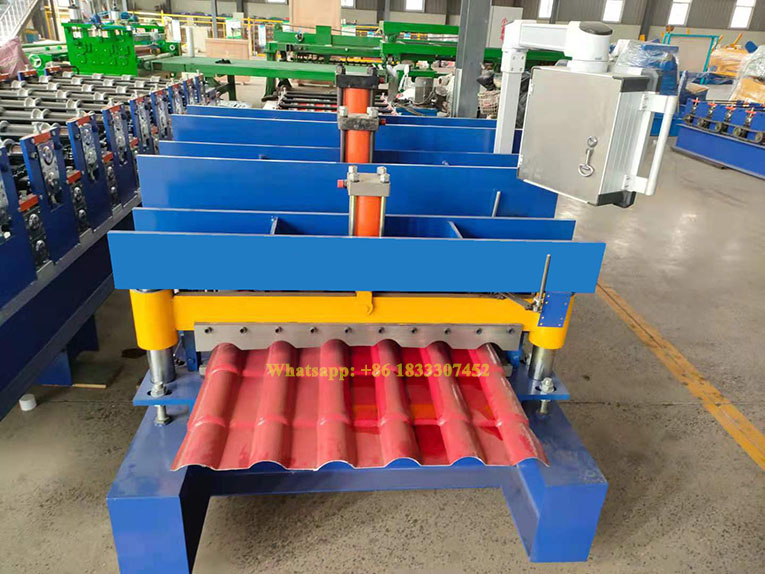

High Speed China Adamante Ruukki Roof Glaze Step Making Machine
Main Roll Forming Machine Details:
1), Raw material:Aluminium Sheet/Steel Sheet
2), Feeding Width : Customize
3), Effective width : According to drawing
4), Dimension of machine:About 6.5meters
5), Shaft station :11 Stations
6), Rolling speed : 4-6m/min
7), Transmission:By chain
8), Size of Chain :1.0 inch
9), Material of Frame :350 H steel welding
10), Thickness of middle plate : 16mm
11), Diameter of Shaft :70 mm
12), Cutter materials:GCr12 steel with quenched treated 60-62°C
13), Control system :PLC Control Box
