| Product Name: Philippine Classic Tile Roof Sheet Machine | |

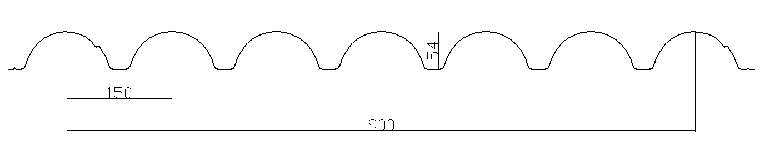

Main Forming Part Details: 1), Raw material: Color Steel Sheet Coil/Glavanized Steel Coil 2), Feeding Width : 1219mm 3), Effective width : 900mm 4), Thickness : 0.3-0.7mm 5), Machine Weight : About 4.0Tons 6), Dimension of machine: About 7.0m*1.4m*1.3m 7), Shaft station : 14 Stations 8), Rolling speed : 0-16m/min 9), Transmission: By chain 10), Size of Chain : 1.0 inch 11), Material of Frame : 300 H steel welding 12), Thickness of middle plate : 16mm 13), Diameter of Shaft : 70 mm (Solid Shaft) 14), Shaft materials : 45# Steel plated hard 15), Material of Roller: 45# Steel plated hard 16), Power of main motor : 4KW 17), Cutter materials: GCr12 steel with quenched treated 60-62°C 18), Power of pump station: 4KW 19), Control system : PLC Control Box 20), Cutting way : Automatic Manual two control way 21), Cutting accuracy: ±2mm 22), Voltage: 380V/50HZ,3PH ( also can do based on your requirement) 23), Machine color : Do based on you need |
|
| Main Machine Parts With The Production Line Together | |

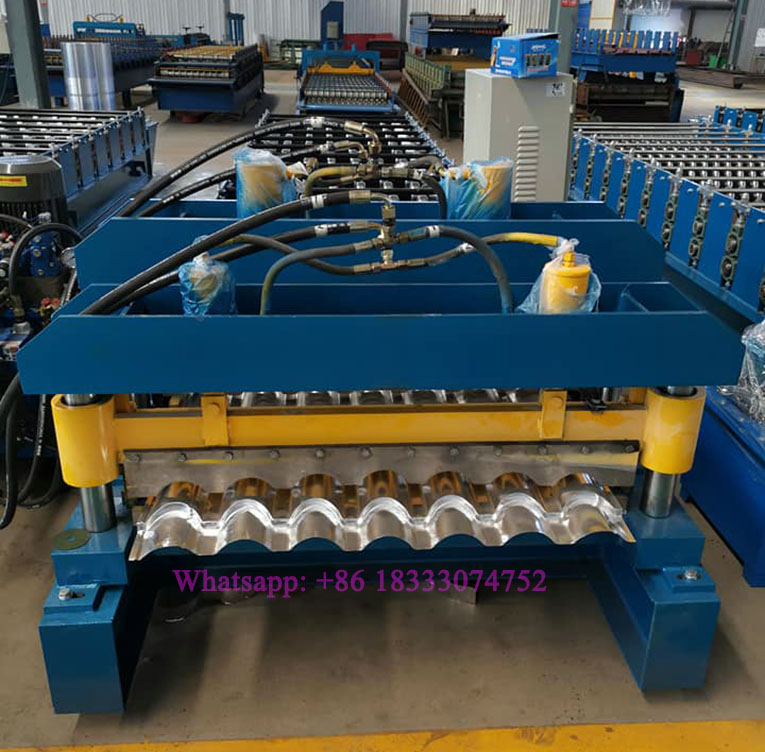

1), Hydraulic Cutter................................ 1 Set This new model Guide pillar shearing cutter make the machine looks more beautiful. It use hydraulic cutting. |  |
| 2), Pressing device.......................................1 Set | |
3), PLC Control device............................1 Set This model control panel save your space, and it uses touch screen, easy operating. |  |
| 4), Pump Station......................................1 Set |  |
| 5), Motor.....................................................1Set | |
6), Feeding device....................................1 Set This new model feeding devide is more easily to adjust materials width, we also add one more station shaft for straighten. |  |
7), Manual Decoiler.................................1 Set The decoiler can bear 5 tons steel coil. |  |
More details about the Philippine Classic Tile Roof Sheet Machine, please contact us! | |
