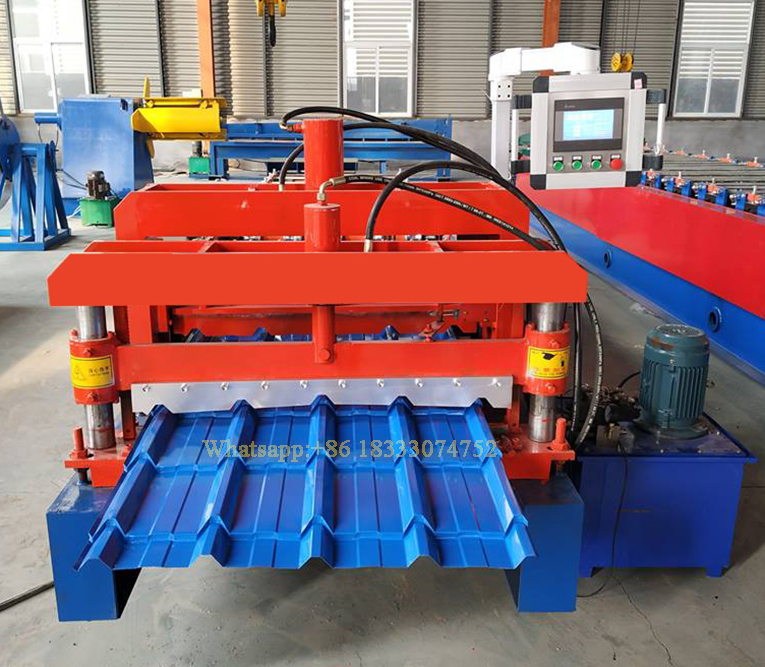

| Product Name: Nigeria Metral Steptiles Roll Forming Machine | |
Main Forming Part Details: 1), Raw material: Color Steel Sheet Coil/Glavanized Steel Coil 2), Feeding Width : According to confirmed sheet drawing 3), Effective width : According to confirmed sheet drawing 4), Thickness : 0.3-0.7mm 5), Machine Weight : About 4.0Tons 6), Dimension of machine: About 7.0m*1.4m*1.3m 7), Shaft station : 13 Stations 8), Rolling speed : 0-16m/min 9), Transmission: By chain 10), Size of Chain : 1.0 inch 11), Material of Frame : 300 H steel welding 12), Thickness of middle plate : 16mm 13), Diameter of Shaft : 70 mm (Solid Shaft) 14), Shaft materials : 45# Steel plated hard 15), Material of Roller: 45# Steel plated hard 16), Power of main motor : 4KW 17), Cutter materials: GCr12 steel with quenched treated 60-62°C 18), Power of pump station: 4KW 19), Control system : PLC Control Box 20), Cutting way : Automatic Manual two control way 21), Cutting accuracy: ±2mm 22), Voltage: 380V/50HZ,3PH ( also can do based on your requirement) 23), Machine color : Do based on you need |
|
| Main Machine Parts With The Production Line Together | |
1), Hydraulic Cutter........................................................................................................ 1 Set | |
2), PLC Control device....................................................................................................1 Set | |
| 3), Pump Station..............................................................................................................1 Set | |
| 4), Motor..........................................................................................................................1Set | |
5), Feeding device............................................................................................................1 Set | |
6), Manual Decoiler..........................................................................................................1 Set | |
| 7), Pressing Device...........................................................................................................1 Set | |
