Automatic Step Press Metal Aluminium Glazed Roofing Tile Making Roll Forming Machine

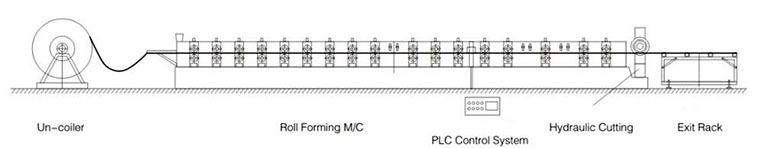

1, Machine Workflow:

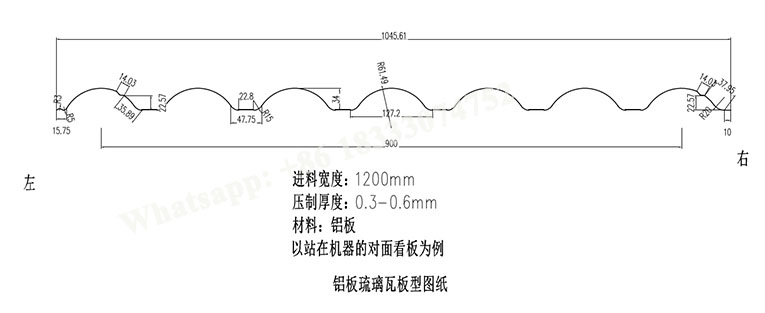

2, Machine Sheet Product:
3, Machine Detailed Specification:
1), Raw material :Color Steel Sheet Coil/Glavanized Steel Coil
2), Feeding Width : 1220mm/1220mm
3), Effective width : 1035/1110mm
4), Thickness : 0.3-0.7mm
5), Machine Weight : About 6.0Tons
6), Dimension of machine : About 7.0m*1.65m*1.55m
7), Shaft station :14 Stations
8), Rolling speed : 0-19m/min
9), Transmission :By chain
10), Size of Chain : 1.0 inch
11), Material of Frame : 350 H steel welding
12), Thickness of middle plate : 16mm
13), Diameter of Shaft : 70 mm
14), Shaft materials : 45# Steel plated hard
15), Material of Roller : 45# Steel plated hard
16), Power of main motor : 5.5KW
17), Cutter materials : GCr12 steel with quenched treated 60-62°C
18), Power of pump station : 4KW
19), Control system :PLC Control Box
20), Cutting way : Automatic Manual two control way
21), Cutting accuracy : ±2mm
22), Voltage : 380V/50HZ,3PH ( also can do based on your requirement)
23), Machine color : Do based on you need
