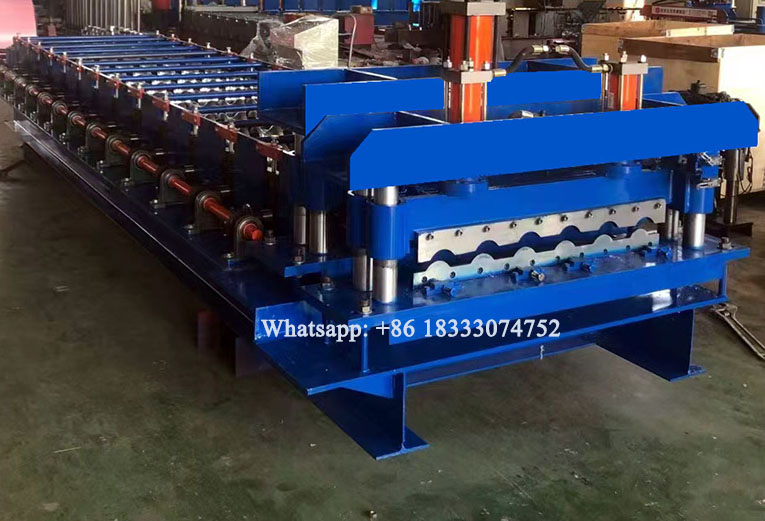

Tile Patterned Roof Machine
This Tile Patterned Roof Machine, it can produce the glazed tile steel metal sheet. We can customize the covered size according your requirement.The tile patterned sheet are widely used for apartments, villas and hotels etc.
Main Tile Patterned Roof Machine Details:
1), Raw material : Color Steel Sheet Coil/Glavanized Steel Coil
2), Feeding Width : According to client's requirement
3), Effective width : According to client's requirement
4), Thickness : 0.3-0.7mm
5), Dimension of machine: About 7.6m*1.65m*1.55m
6), Shaft station : 13 Stations
7), Rolling speed : 0-10m/min
8), Transmission : By chain
9), Size of Chain : 1.0 inch
10), Material of Frame : 350 H Steel welding
11), Thickness of middle plate : 16mm
12), Diameter of Shaft : 70 mm
13), Shaft materials : 45# Steel plated hard
14), Material of Roller : 45# Steel plated hard
15), Power of main motor : 5.5KW
16), Cutter materials : GCr12 steel with quenched treated 60-62°C
17), Power of pump station : 4KW
18), Control system : PLC Control Box
19), Cutting way : Automatic and Manual two control way
