Tilespan Elite R Span Roofing Sheet Roll Forming Machine
1, Applicable Industries:
Hotels,Garment Shops,Building Material Shops,Manufacturing Plant, Machinery Repair Shops,Food and Beverage Factory,Farms,Restaurant,Home Use, Retail,Food Shop,Printing Shops,Construction works,Energyand Mining,Food and Beverage Shops,Other Advertising Company
2, Characteristics Of Tile Patterned Roof Sheet Roll Forming Machine:
Base is made of high tensile strength H beam with precision welded and good rigidity; shaft, rollers and all components are manufactured precisely to have long lifetime; efficient design and easy maintenance.
3, Main parameters Of Tile Patterned Roof Sheet Roll Forming Machine:
1), Material thickness : 0.3-0.6 mm
2), Working speed : 8-12 m per minute
3), Processing material: color coated steel plate, galvanized steel plate
4, The Work Flow Of Tile Patterned Roof Sheet Roll Forming Machine.
1), Decoiler
Work type: passive type
Structure: Steel channel welded for the basic frame
Usage:To support the coil and make the uncoiling
Loading capacity : 5 tons
Inner diameter: 450-550mm (manual adjustment)
Brake system: manual brake
2), Roll forming machine
Feeding device : One set guiding roller. Steel plate welded platform to carry the sheet and feed into roll forming system. Feeding width is adjustable with the handle wheels.
Shaft material : 45# STEEL
Shaft diameter : 70 mm Tempering treatment to prevent deformed and improve hardness
Roller : 45# steel , Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
Rolling station : 16 rolling stations
Machine basic frame : 350# H steel welded
Work power : 5.5 Kw
Transmission : By Chains with cover
Control Model: Hydraulic Control Syste

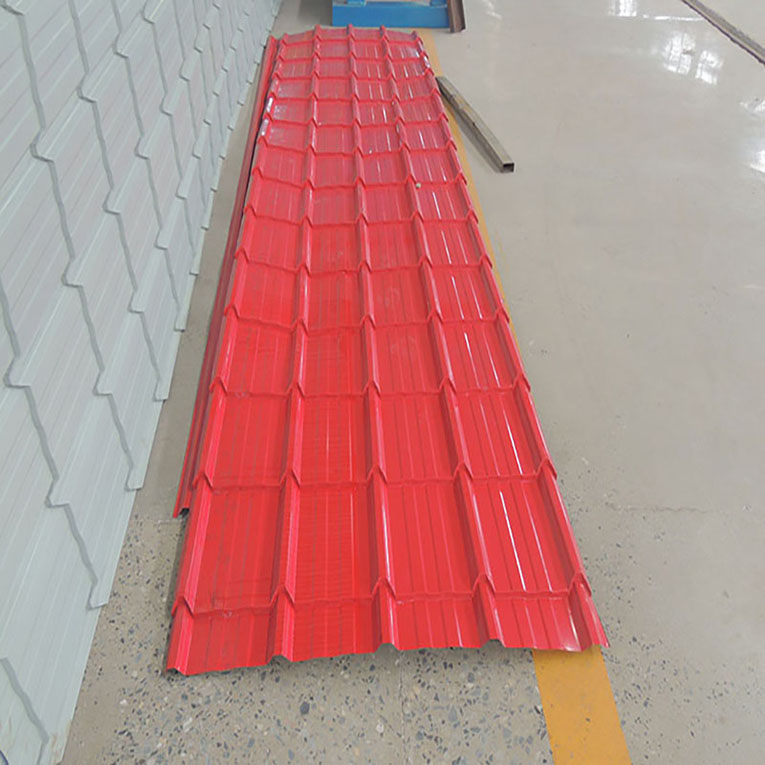

The Finished Product Of Tilespan Elite R Span Roofing Sheet Roll Forming
