Tilespan Qtiles Roof Machine
Details
Versatile Roof Tile Metal Sheet Profile Roll Forming Machine Deatils :
1), Raw material: Color Steel Sheet Coil/Glavanized Steel Coil
2), Feeding Width : According to confirmed sheet drawing
3), Effective width : According to confirmed sheet drawing
4), Thickness : 0.3-0.7mm
5), Machine Weight : About 4.0Tons
6), Dimension of machine: About 7.0m*1.4m*1.3m
7), Shaft station : 13 Stations
8), Rolling speed : 0-16m/min
9), Transmission: By chain
10), Size of Chain : 1.0 inch
11), Material of Frame : 300 H steel welding
12), Thickness of middle plate : 16mm
13), Diameter of Shaft : 70 mm (Solid Shaft)
14), Shaft materials : 45# Steel plated hard
15), Material of Roller: 45# Steel plated hard

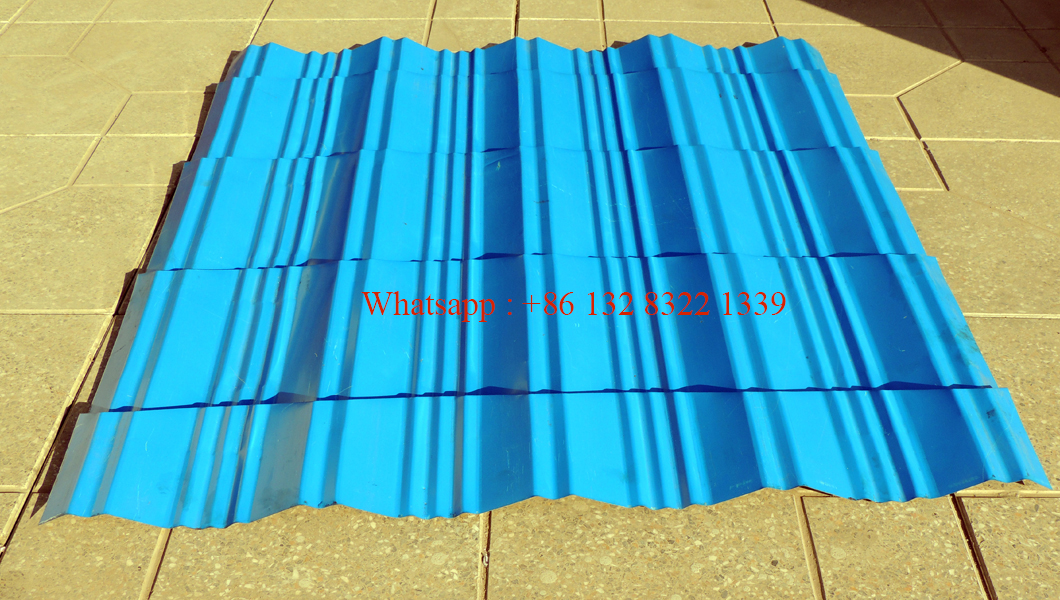

The Finished Product Of Versatile Roof Tile Metal Sheet Profile Roll Forming Machine :
