762-670-750 Three Layer LokPro Roof Sheet Roll Forming Machine
1, Main Technical Dates:
1), Raw material : Color Steel Sheet Coil/Glavanized Steel Coil
2), Feeding Width : Customized
3), Effective width : Customized
4), Thickness : 0.3-0.7mm
5), Machine Weight : About 10.0Tons
6), Dimension of machine : About 9.6m*1.65m*1.55m
7), Shaft station : 13/14/16 Stations
8), Rolling speed : 0-19m/min
9), Transmission : By chain
10), Size of Chain : 1.0 inch
11), Material of Frame : 350 H steel welding
12), Thickness of middle plate : 16mm
13), Diameter of Shaft : 70 mm -80mm (Solid Shaft )
14), Shaft materials : 45# Steel plated hard
15), Material of Roller : 45# Steel plated hard
16), Power of main motor : 5.5KW+5.5KW
17), Cutter materials : GCr12 steel with quenched treated 60-62°C
18), Power of pump station : 5.5 KW
19), Control system : PLC Control Box

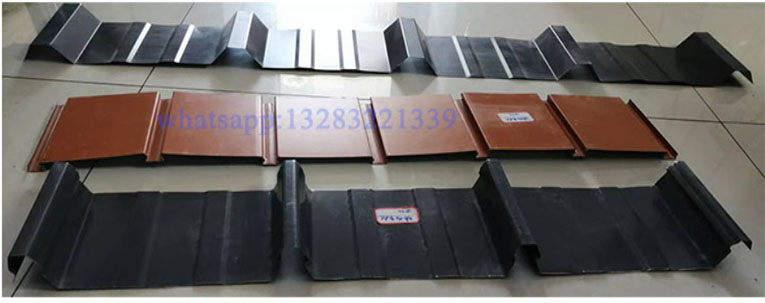

2, The finished Product Of 762-670-750 Three Layer LokPro Roof Sheet Roll Forming Machine :

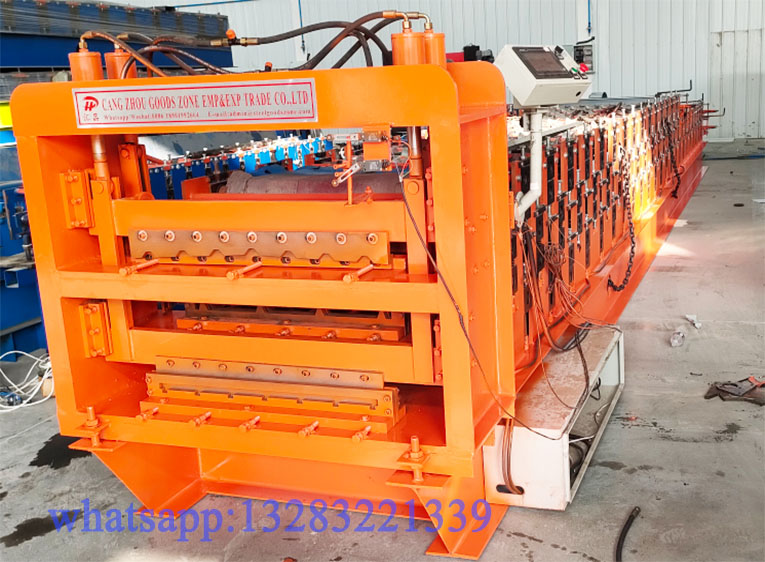

3, Our Machine Picture Show:
