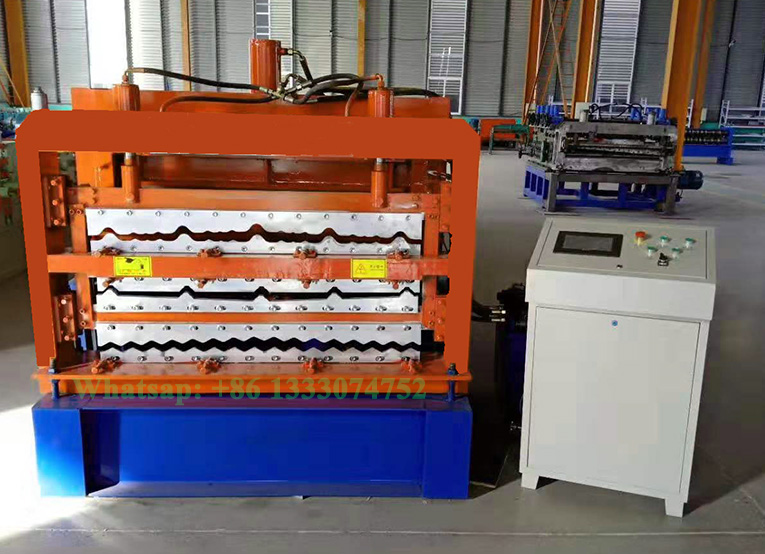

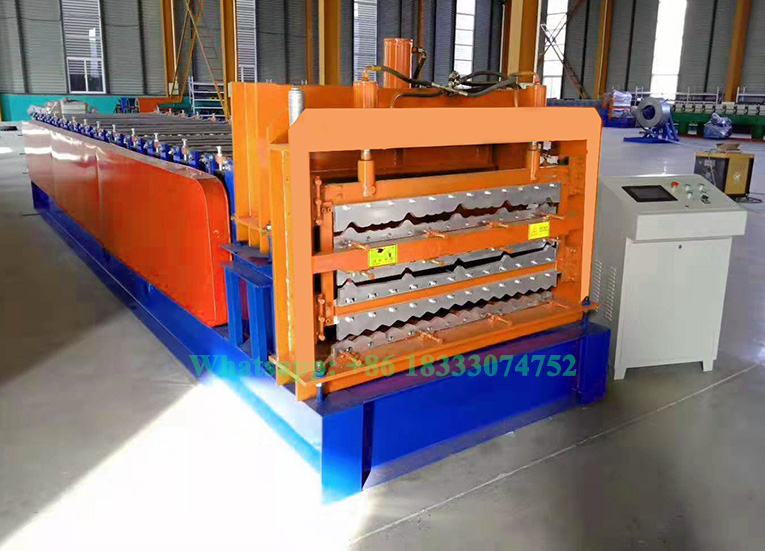

PPGI Triple layers r panel corrugated sheets roofing tile roll forming machine for roof and wall

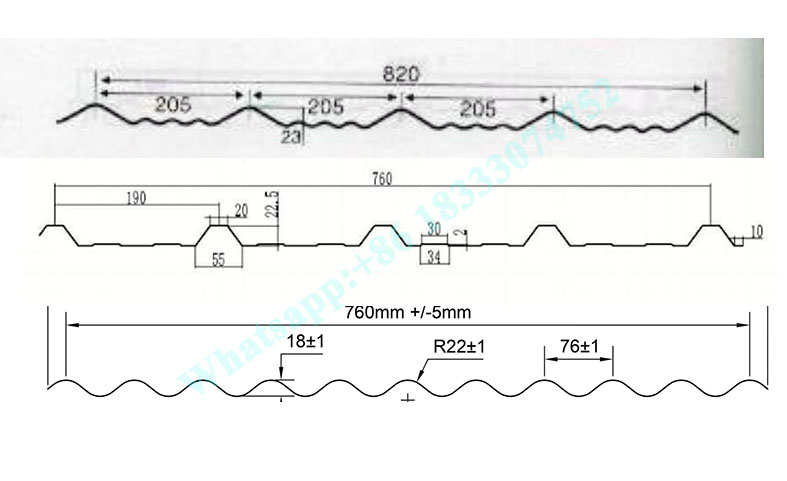

1, Production Drawing:

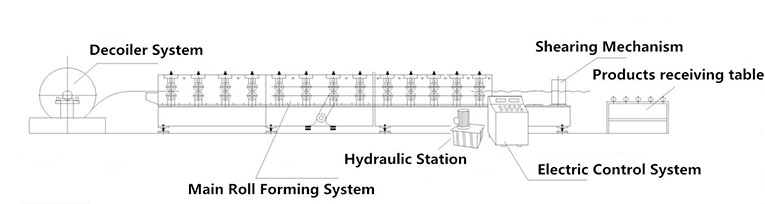

2, Working Flowing:
3, Main Roll Forming Machine Details Specification:
PPGI Triple layers r panel corrugated sheets roofing tile roll forming machine for roof and wall is mainly producing steel roof/ wall sheet .The final products have three types,corrugated sheet and trapezoidal sheet and glazed tiles.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.
1), Feeding device : With two hand wheels to adjust the feeding of the material,with bearing inside of the feeding rollers.
2), Machine body : 350H steel welded
3), Machine frame : Iron cast molding frame
4), Roller station : 13 stations &14 stations & 14 stations
5), Roller material : 45# steel with quenched treatment and hard chroming
6), Shaft diameter: 75mm, solid shaft
7), Shaft material : 45# steel with tempering treatment
8), Motor power : 5.5 kw
9), Speed : 0-6m/min 8-15m/min 8-15m/min
10), Transmission : By double chains
11), Voltage : 380V,50HZ,3PH
