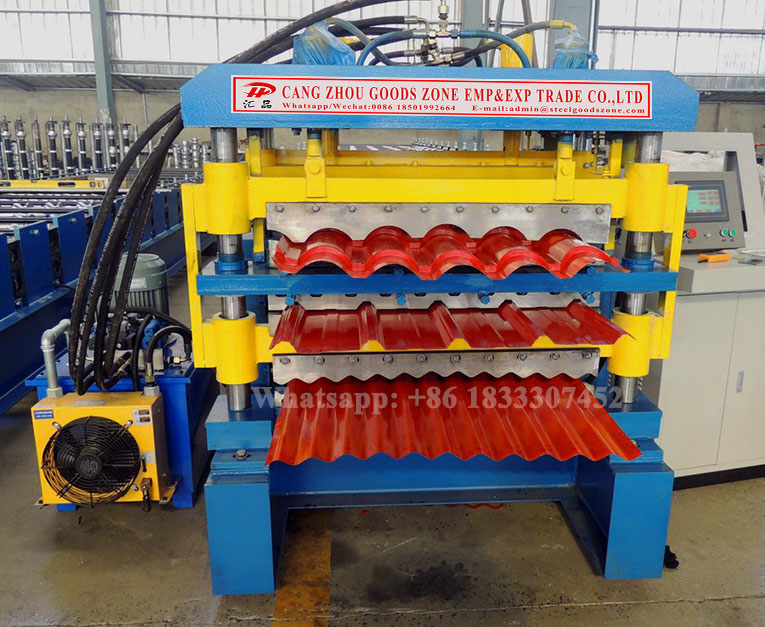

Customize Three Layers Roof And Wall Sheet Tile Roll Forming Machine
The three layer roof and wall sheet roll forming machine can produce three different model sheets. we can customize the machine according to your requirement. These sheets are widely used for warehouse, buildings and so on. The sheet materials can be color coated coil ( PPGI) or galvanized steel coil ( GI) .
Main Machine Details:
1), Raw material : Color Steel Sheet Coil/Glavanized Steel Coil
2), Feeding Width : 914mm-1220mm
3), Effective width : According to client's requirement
4), Thickness :0.3-0.7mm
5), Machine Weight : About 7.0Tons
6), Rolling speed : 0-15 m/min
7), Transmission : By chain
8), Size of Chain : 1.0 inch
9), Material of Frame : 350 H steel welding
10), Thickness of middle plate : 16mm
11), Diameter of Shaft : 70 mm /75mm /80mm
12), Shaft materials : 45# Steel plated hard
13), Material of Roller : 45# Steel plated hard
14), Power of main motor : 5.5KW
15), Cutter materials : GCr12 steel with quenched treated 60-62°C
16), Power of pump station : 4KW
17), Control system : PLC Control Box
18), Cutting way : Automatic Manual two control way
19), Voltage : 380V/50HZ,3PH ( also can do based on your requirement)
