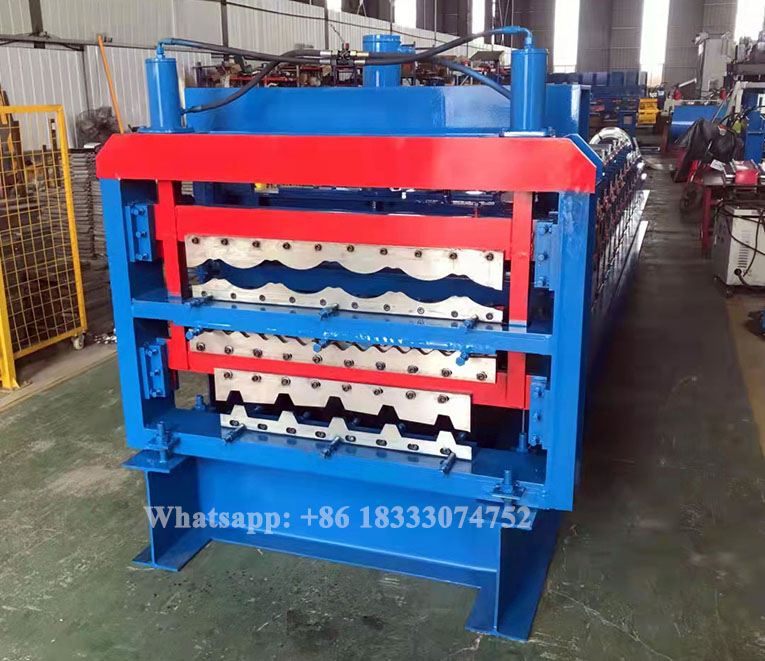

Main Details Of Customize Three Model Roof Tile Roll Forming Machine In One Machine (828-840-850 Model)
Raw material : Color Steel Sheet Coil/Glavanized Steel Coil
Feeding Width : Customized
Effective width : Customized
Thickness : 0.3-0.7mm
Machine Weight : About 9.0Tons
Dimension of machine : About 9.6m*1.65m*1.55m
Shaft station : 13/14/16 Stations
Rolling speed : 0-19m/min
Transmission : By chain
Size of Chain : 1.0 inch
Material of Frame : 350 H steel welding
Thickness of middle plate : 16mm
Diameter of Shaft : 70 mm -80mm
Shaft materials : 45# Steel plated hard
Material of Roller : 45# Steel plated hard
Power of main motor : 5.5KW
Cutter materials : GCr12 steel with quenched treated 60-62°C
Power of pump station : 4KW
Control system : PLC Control Box
Cutting way : Automatic Manual two control way
Cutting accuracy : ±2mm
Voltage : 380V/50HZ,3PH ( also can do based on your requirement)
