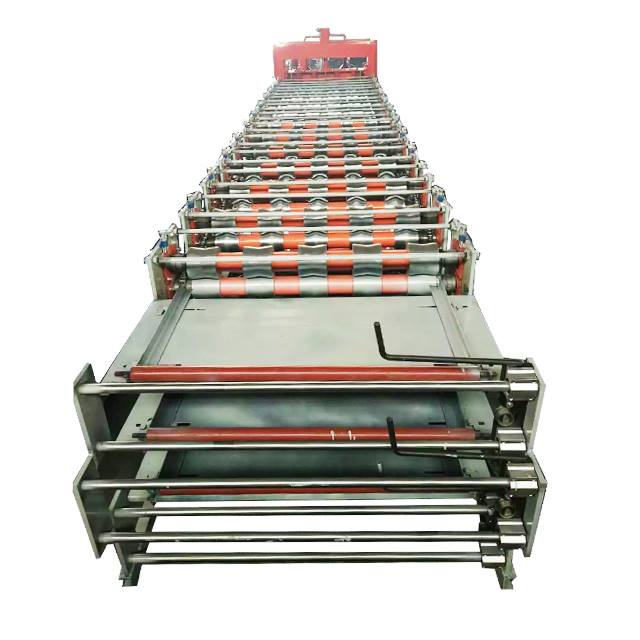

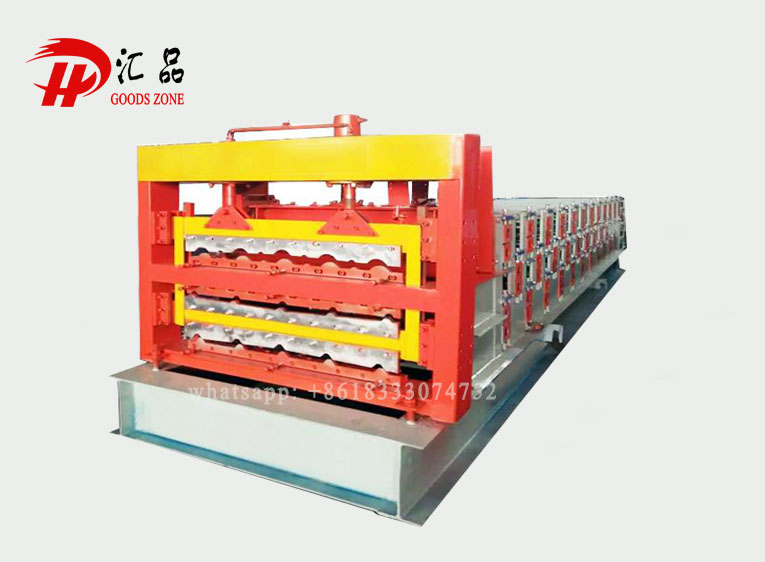

Triple Layer Forming Machine
1, Materials for Triple Layer Form Machine:
1), Raw material : Colored steel sheet, galvanized steel sheet, aluminum sheet
2), Thickness of coil sheet: 0.2-0.8 mm
3), Material expand width: 1000 mm
4), Efficiency width: 840-910-820 mm
2, Details Of Triple Layer Forming Machine
1), Roller material: High grade NO. 45 forged steel with 0.05mm hard chrome plating
2), Shaft material: High grade NO. 45 carbon wrought steel
3), Cutting blade: Cr12 mould steel with quenched treatment
4), Diameter of shaft: 70mm or as your requirement
5), Main frame: 300 H steel
6), Forming steps Up layer : 9 stations ; Middle layer:11 stations ; Down layer: 13 stations
7), Productivity: Up layer : 4-5m/min Middle layer : 20-25m/min Down layer : 20-25m/min
8), Hydraulic station power : 4+4KW
9), Hydraulic pressure: 10-12MPa
10), Appearance size : About 6500mm*1500mm*1800mm
11), Weight: 8-10tons
12), Hydraulic oil : 40# hydraulic oil
13), Electric tension: 380V 50 Hz 3 Phase or as your requirement
14), Cut Model : Hydraulic forming after cutting off
15), Cutter materia: Cr12 Heat Treatment
16), Electronic control system: PLC, Touch Screen, Encoding counter
17), Color: Blue, green or yellow or as your requirement
18), Rolling material : 45# steel,roller surfaces polishing, hard plating
