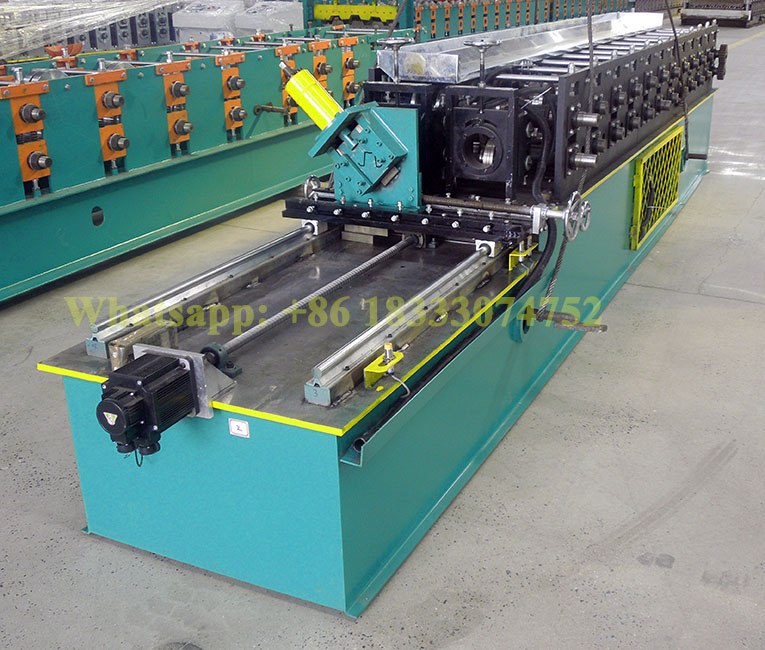

Batten Omega Double Profile Steel Roll Forming Machine

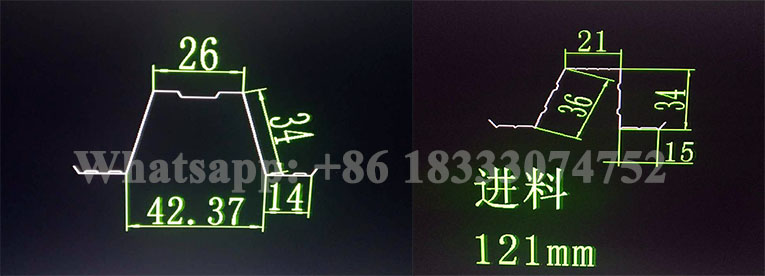

1, Product Drawing Of Batten Omega Double Profile Steel Roll Forming Machine:
Main Technical Date Of Batten Omega Double Profile Steel Roll Forming Machine:
1.Manual decoiler
1) Capacity:1.5T
2) Coil inner diameter:350-450mm
3) Coil width:150mm
2.Roll forming machine
1) Machine structure:cast iron roller fixer
2) Main power:5KW siemens motor
3) Forming stations:12 stations
4) Way of drive:by gear
5) Diameter of shaft:50mm
6) Max rolling speed: 35-40m/min or higher speed as request
7) Thickness: 0.3-0.8mm galvanized steel or prepainted sheet,G550Mpa
8) Material of roller:CR12 with quenched treatment
9) Material of blade mould:Cr12, quenched 58-62
10) way of cutting:hydraulic mould cutting(flying cut,cut without stop)
11) Length cutting tolerance:+/-0.5mm
12) Electrical requirement:380V,50Hz,3P
3.Control system
1) Control system:PLC
2) PLC brand:Delta
3) Screen:Touch screen
4) Screen brand:Touch screen
4.Hydraulic system:
1) Hydraulic pressure :16Mpa
2) Hydraulic power:4kw
3) Cooling system:fan cooling
5.Product table
1) Length:3m
2) Manual or automatic
